Bridge-type machining center

W-axis linkage I Movable worktable I

  • For ultra-high workpiece
  • High rigidity, thermal symmetry structure

Description



DESCRIPTION





TECHNICAL DATA





 VIDEO





SEND A MESSAGE



HIGHLIGHTS

附件8-pgmb第一个亮点图.png W-axis supplements the stroke to increase the processing range

  • It ensures processing rigidity, effectively increases the processing range of the machine, and facilitates the processing of ultra-high workpieces.
  • The strokes of the moving beam and the ram can complement, which can effectively prevent the ram from extending too long for a long time and affecting the accuracy of the whole machine.

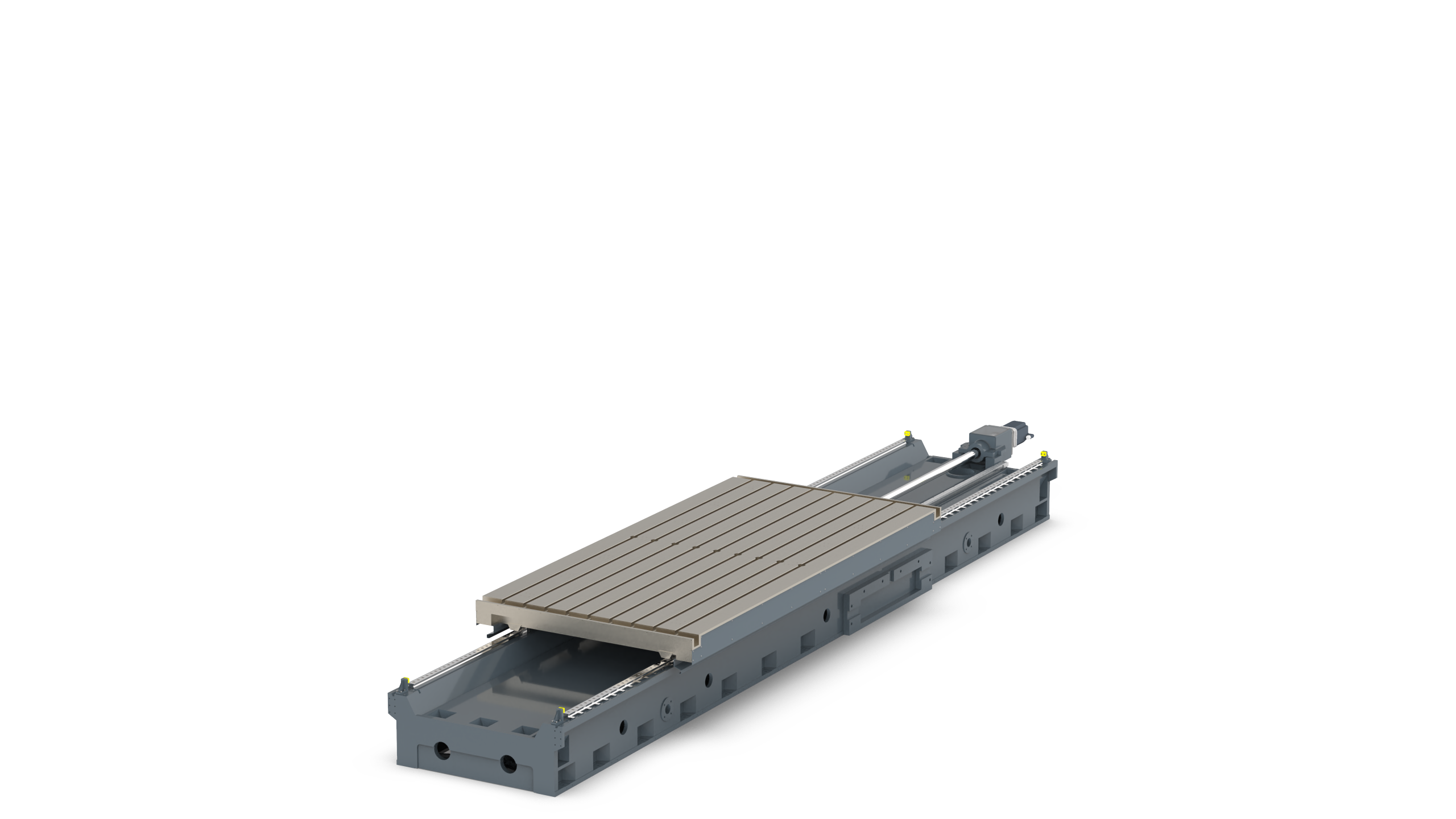

X-axis structure design

  • The lead screw is installed at the center of the workbench to ensure rigidity and stability.
  • The workbench has a compact overhang and high rigidity.
  • Dual heavy-duty linear guideways are used.
亮点3.png Y-axis structure design

  • The Y-axis is driven using a combination of servo motor, gearbox, and ball screw transmission;
  • The cross beam guide rail adopts parallel structure and linear guide method. Use 55 specification heavy-duty guide rails with a guide rail span of 550mm.
  • The Y-axis transmission saddle is equipped with 7 sliders, which has good anti-seismic performance
Z-axis structure design

  • The dual servo motor drive system is used with a high-rigidity ram and a powerful lubrication system to enable faster start-stop response and higher processing efficiency during product processing.
  • Dual servo realizes center of gravity drive, eliminating the rotational torque generated during driving.

BASIC INFORMATION

  • The machine integrates powerful functions of drilling, milling, boring, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, complement, three-coordinate linkage.
  • Machining for various metal workpieces, such as large parts, plate parts, shell parts, molds and other precision parts.
  • Widely used in industries such as shipbuilding, power generation, heavy machinery, mold manufacturing and etc.



1.png        2.png        3.png

CONFIGURATION

Standard Configuration

SIEMENS 828D

Transmission fully geared

Automatic lubrication device

Spindle air curtain protection

Protection for working area

Cutting cooling system

Operation station

Handwheel

Chip conveyor

Warning light

Work area lighting

Air conditioned Electric cabinet

Spindle and honest speed box thermostat system

Hydraulic station

Optional Configuration

SIEMENS ONE

FANUC O1-MF PLUS

FANUC 311

Overall heightening of columns

Protection all around

ATC 40/60t

4-Axis rotary table

Milling head box

Milling head

Coolant Through Spindle

Fully Closed Loop Scale

Automatic measuring device for workpieces

Automatic tool measuring device

Oil-water separator



VIDEO

TECHNICAL DATA

Items Unit PGMG-2540 PGMG-2560 PGMG-2580
Travel X-axis mm 4200 6200 8500
Y-axis mm 3900 3900 3900
Z-axis mm 800 800 800
W-axis mm 1300 1300 1300
Spindle nose to table mm 0-2100 0-2100 0-2100
Distance between columns mm 3200 3200 3200
Worktable Size mm 2500*4000 2500*6000 2500*8000
Max. load t 15 22 30
Spindle unit Type / Mechanical Mechanical Mechanical
Power kW 17/25.5(S1/S6-40%) 17/25.5(S1/S6-40%) 17/25.5(S1/S6-40%)
Speed rpm 6000 6000 6000
Torque Nm 723/1085(S1/S6-40%) 723/1085(S1/S6-40%) 723/1085(S1/S6-40%)
Taper / BT50 BT50 BT50
Square ram mm 400*400 400*400 400*400
Feedrates Rapid on X/Y/Z/W m/min 15/15/10/3 15/15/10/3 15/15/10/3
X/Y/Z Cutting Feed Rate m/min 10/10/8 10/10/8 10/10/8
Dimension Machine Height mm 6500 6500 6500
Machine Width mm 7800 7800 7800
Machine Length mm 12000 16000 20000
Machine Weight t 55 60 65
