Bridge machining center

3 axes| Movable worktable | BT50 spindle

  • Economical model brings high cost-performance
  • Integrated casting iron beam and columns
  • Easy installation and maintenance
Bridge machining center

Description



DESCRIPTION





TECHNICAL DATA





 VIDEO





SEND A MESSAGE



HIGHLIGHTS






 X-axis structure design

  • The 2-55 heavy-duty linear guideways are used
  • The ballscrew drive is equipped to improve torque
  • The bed and worktable are made of high strength cast iron
  • The ballscrew are fixed with pre-stretching structure on both ends to decrease the precision loss caused by thermal expansion and contraction.

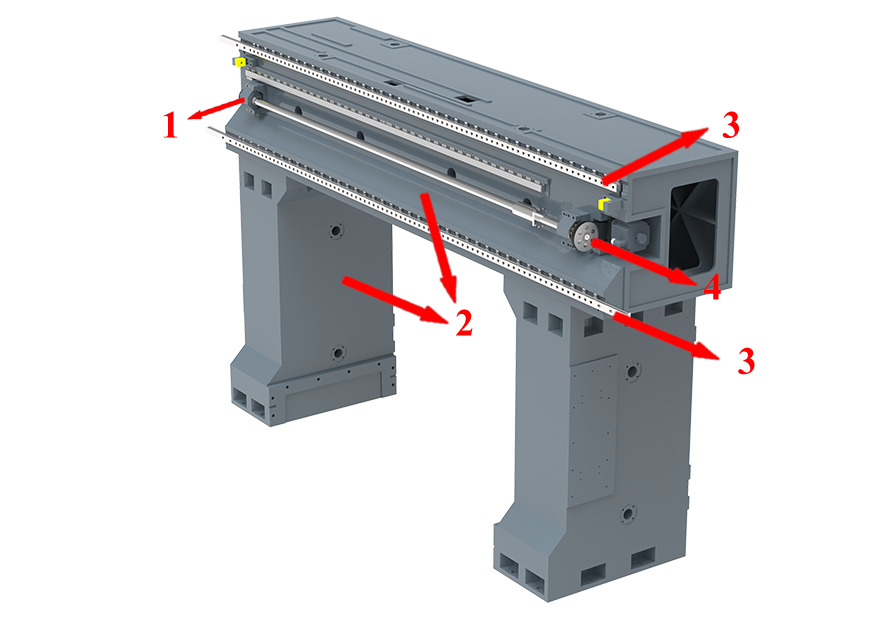

Y-axis structure design

  • The ballscrew are fixed with pre-stretching structure on both ends to decrease the precision loss caused by thermal expansion and contraction.
  • The beam and columns are integrated casting by high strength cast iron
  • The 2-55 heavy-duty linear guideways is equipped, it features high rigidity and stability thanks to the ladder-shaped layout and large span.
  • The ballscrew drive is used to improve torque

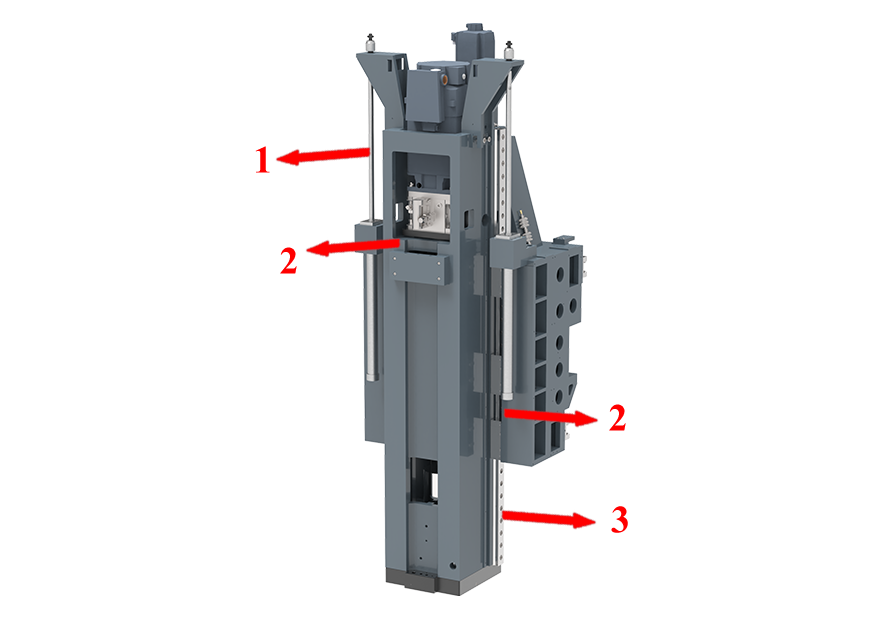

 Z-axis structure design

  • Dual nitrogen automatic compensation balance cylinders
  • High-strength cast iron slider and ram
  • The 2-55 heavy-duty linear guideways locate on the both sides of ram, with a large span, can bear bigger cutting force.
Top-class numerical control system with high processing stability

  • The Siemens and Fanuc  CNC system is adopted
  • With powerful functions and full-level data transmission
  • Adopts a modular and open architecture design with high scalability
  • Increase the flexibility and productivity of the machine tool

BASIC INFORMATION

  • The machine integrates powerful functions of drilling, milling, boring, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, complement, three-coordinate linkage.
  • Machining for various metal workpieces, such as large parts, plate parts, shell parts, molds and other precision parts.
  • Widely used in industries such as shipbuilding, power generation, heavy machinery, mold manufacturing and etc.




CONFIGURATION

Standard Configuration

Siemens 828D CNC system

Fully-enclosed square ram

Spindle reduction box

X/Y/Z high-performance servo motor

Centralized lubricating device

Cast iron machine bed and main parts
Water-jet external cooling of tools

Chain-type chipconveyor

Air conditioning of electric cabinet

Tri-color alarm lamp

Lighting device of machine

Separated handwheel
Push button station
Hydraulic station

 Optional Configuration

Siemens 840D CNC system

Fanuc 0i-MF PLUS CNC system

Fanuc 31i CNC system

24-location disc type tool magazine

32/40/60-location chain-type tool magazine

32/40/60-location vertical and horizontal integrated tool magazine

Accessory head changer (automatic)

Various accessory milling head

Through-spindle coolant (TSC)

Linear encoder closed-loop control

4th axis rotarty table

Exchangeale pallets

Workpiece inspection

Tool detection

VIDEO

TECHNICAL DATA

Items Unit PGME-1525/30 PGME-2030/40
Travel X-axis mm 2700/3200 3200/4200
Y-axis mm 1800 2300
Z-axis mm 1000
From spindle end to worktable mm 150-1150
Distance of two columns mm 1800 2300
Worktable Size mm 1500*2500/3000 2000*3000/4000
Max. load t 6/7 9/12
Spindle unit Type / Mechanical
Power kW 15/18.5(S1/S2 60min)
Speed rpm 6000
Torque Nm 143/190(S1/S2 60min)
Taper / BT50
Square ram mm 400*400
Feedrates Rapid on X/Y/Z/W m/min 15/15/12
X/Y/Z/W Cutting Feed Rate m/min 10/10/10
Dimension Machine Height mm 4900
Machine Width mm 4300 4800
Machine Length mm 7000/8000 12000
Machine weight t 25/27 30/33
