5-Axis Trunnion Horizontal Machining Center

X-axis 1615mm | 10000 rpm |
BT50 spindle

• Full direct-drive A/C five-axis cradle turntable, one clamping to complete multi-face machining.

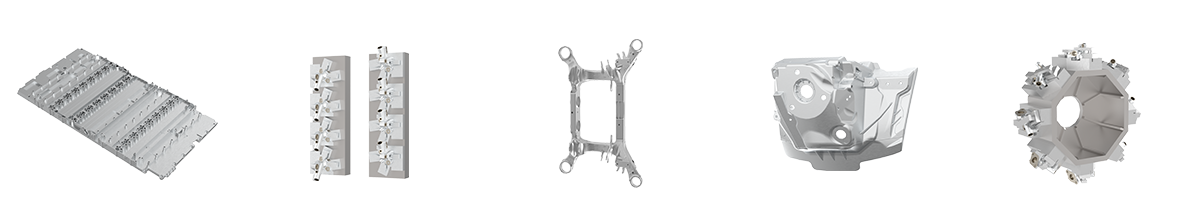

• Applied to the processing of aluminum and iron castings such as automotive die-casting part, die-casting box, multi-cavity part, etc.



Description



DESCRIPTION





TECHNICAL DATA





 VIDEO





SEND A MESSAGE



HIGHLIGHTS

Comparing with the traditional production line, the PW series is advantaged in the following aspects:


Fixed-distance structured spindle box design

  • The worktable is a fixed structure while the column is movable, the saddle moves towards X-axis, the column located above the saddle moves toward Z-axis, and the machine head moves in the Y-axis direction.
5-Axis Trunnion Horizontal Machining Center




Highlight 3--.1.png

Top-class numerical control system with high processing stability

  • The Siemens SINUMERIK 828D control unit is equipped
  • With powerful functions and full-level data transmission
  • Adopts a modular and open architecture design with high scalability
  • Achieves almost all machining applications.



A variety of optional clamping methods to meet the diverse needs

1- Horizontal 4-axis with double working positions 2- Horizontal 5-axis with double working positions 3- Flip-over type horizontal with double working p 4- Cradle type horizontal 5-axis(1).png
Horizontal 4-axis with double

working positions

Horizontal 5-axis with double

working positions

Flip-over type horizontal with double working positions Cradle type horizontal 5-axis

BASIC INFORMATION

  • Full direct-drive A/C five-axis cradle turntable, one clamping to complete multi-face machining.
  • 240Nm large-torque motorized spindle with a maximum speed of 10,000 rpm/min.
  • Applied to the processing of aluminum and iron castings such as automotive die-casting part, die-casting box, multi-cavity part, etc.




CONFIGURATION

STANDARD

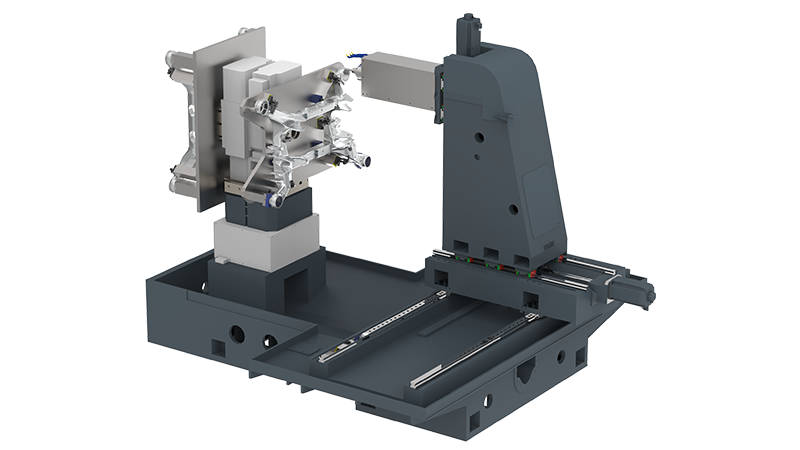

20220219141428919.png@!w400 20220219141429926.png@!w400 附件23 PW-cast iron bed and structure.png
Operate system Disc type tool magazine Cast iron bed and structure

OPTIONAL

20220117111759172.png@!w400 20220117111654355.png@!w400 20220117111655302.png@!w400 20220117111656691.png@!w400
Horizontal 4-axis with double working positions Horizontal 5-axis with double working positions Flip-over type horizontal with double working positions Cradle type horizontal 5-axis



VIDEO



TECHNICAL DATA

TRAVELS PWB1511
X-Axis 1615 mm
Y-Axis 1030 mm
Z-Axis 650 mm
A-Axis ±120°
C-Axis 0~360°
Spindle speed 10000 rpm
Spindle taper BT50
TOOL MAGAZINE
Type  Disc type
Max.pockets of tool magazine 30 pcs
Max.tool diameter(full adjacent pockets) φ125mm
Tool change time (tool to tool) 4 sec
AXIS FEED RATES
Rapid on X 60 m/min
Rapid on Y/Z 60/60 m/min
X/Y/Z Cutting feed rate 15000 mm/min
MOTOR POWER
Spindle power 54/65kW
LUBRICATION AND COOLING SYSTEM
Lubrication system  Automatic
Coolant system  Water cooling
ACCURACY
X-Axis Positioning accuracy 0.015 mm
Y/Z-Axis Positioning accuracy 0.012 mm
X/Y/Z-Axis Repeatability accuracy 0.01 mm
MECHANICAL SPECIFICATION
Machine height 4200 mm
Machine width 4490 mm
Machine length 7850 mm
Machine weight 28 t
