Description

High Quality 5 Axis Machining Center

Established in 2005, the firm is a nationwide intelligent 5 axis machining center high-tech organization that integrates research and development, production, sales, and service. We have a full range of machining centers, including double-column machining centers, lathes, CNC drilling and tapping machines, parts processing centers, mold processing centers, specular machines, engraving and milling machines, high light machines, and other precision equipment series.

After years of development in 5 axis machining center, we are now one of the top local manufacturers of high-end intelligent equipment. With its headquarters located in the vibrant and innovative city of Shenzhen, we employ 3000 people. Also, we operate 4 state-of-the-art production facilities totaling over 450000. Being a technological firm, it has a skilled research and development staff. Its products are protected by separate intellectual property rights.

Expert Sales-Service

Our company’s sales and service network currently spans the entire nation. We have expert after-sales service centers, as well as branches and offices in Beijing, Shanghai, and other locations, to offer customers comprehensive, practical, and prompt service support.

Anticipating the future, we will uphold the enterprise culture’s “we always try our best to do better” spirit. We will do this by continuing to offer the majority of metal processing users an effective 5 axis machining center, and superior professional services. Thus, on the foundation of a strong management system and quality assurance system, focused on market and customer requirements.

HIGHLIGHTS



High performance 5 axis linkage processing Equipped with high-performance 2-axis head, HSK A63 high speed motorized spindle, realizing multi-directional and multi-angle processing, to meet the processing requirements of high smoothness of various special-shaped parts.

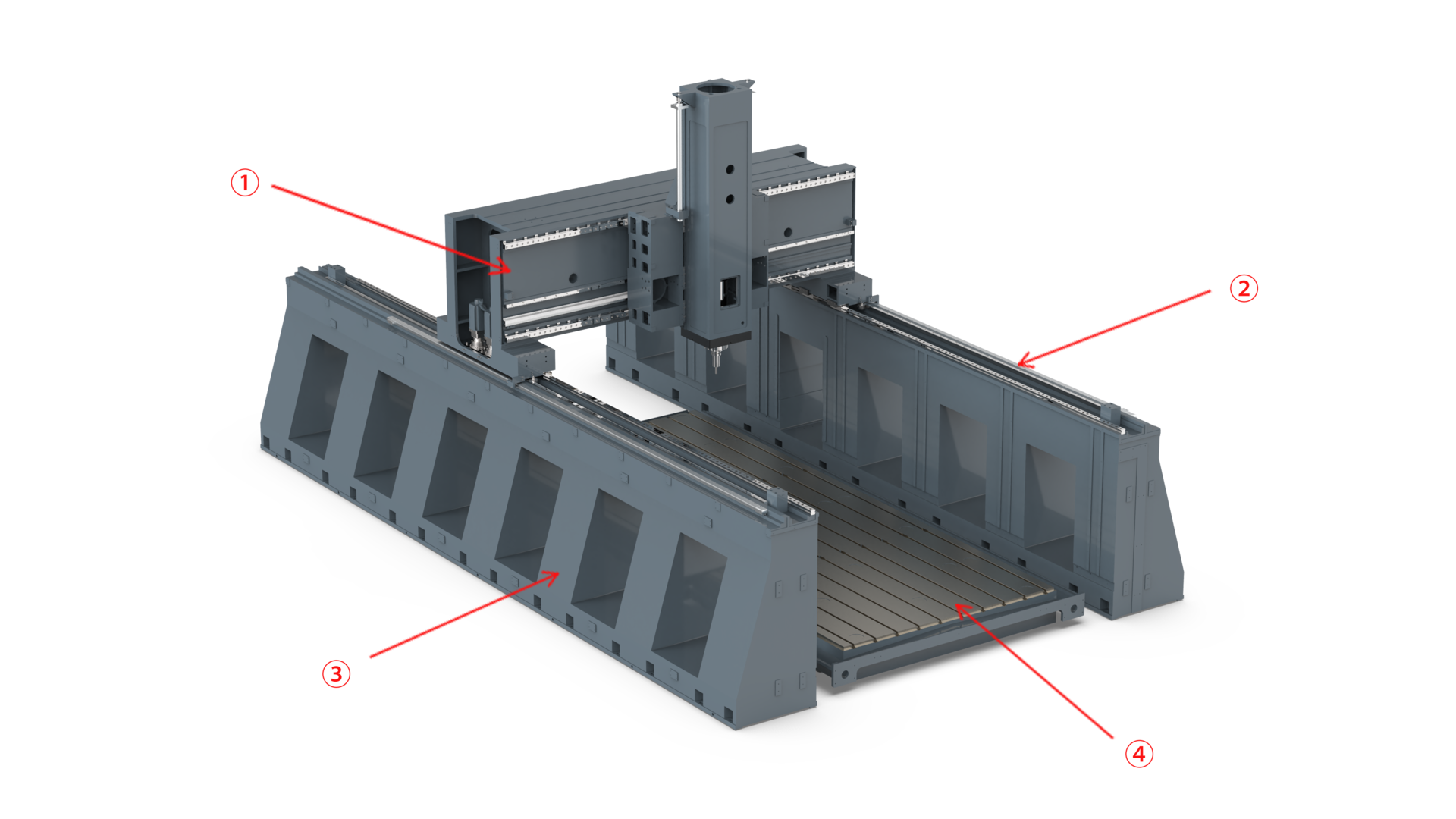

The optimized structure enables the equipment to maintain high performance The lightweight of moving parts achieves high rotation feed, while reducing the load of guide screw and guide rail, reducing wear, which improves machining accuracy and prolongs the machine service life. The bridge structure increases the rigidity of the load-bearing part of the machine tool, which effectively avoids the vibration that is easy to occur when the beam moves quickly and the spindle runs at high speed. The two sides symmetrical pyramid bed structure can realize high rigidity, high bearing capacity and high stability. Fixed worktable saves space and with greater carrying capacity.



Integrated one-piece structure is used to ensure machine rigidity The integrated worktable, casting from high-strength high-quality cast iron and resin sand processing, and is arranged in a ‘box’ structure, featuring high strength and rigidity The integrated beam and slide structure, made of high-strength high-quality cast iron, with compact design, which ensures the rigidity of the beam.

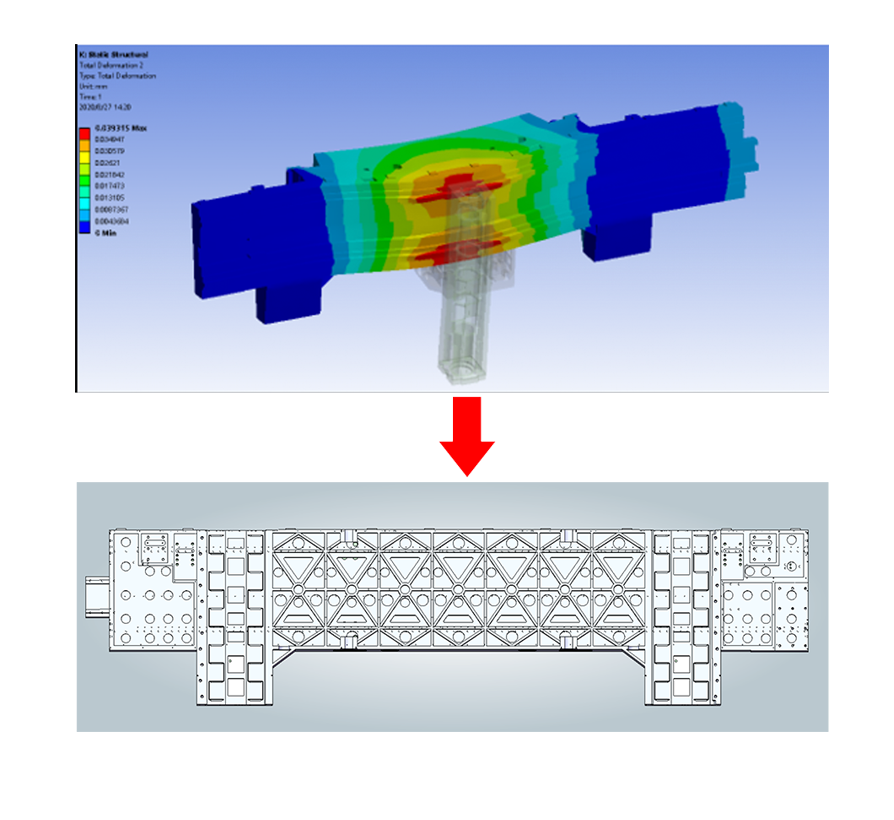

The beam with intensive stiffener structure, having good bending resistance and cutting resistance The Intensive stiffener structure is adopted for the beam, which is obtained by using finite element analysis, it is not easily deformed and it increases the rigidity.

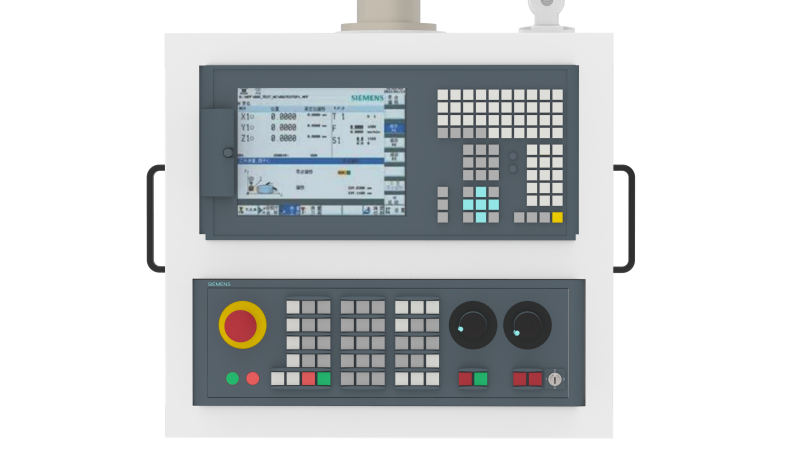

Comprehensive, top class, open electrical system The Siemens SINUMERIK 840D SL is integrated into the machine, with the following advantages: With powerful functions and full-level data transmission Adopts a modular and open architecture design with high scalability Increase the flexibility and productivity of the machine tool
