HIGHLIGHTS
|
|
High performance 5 axis linkage processing
|

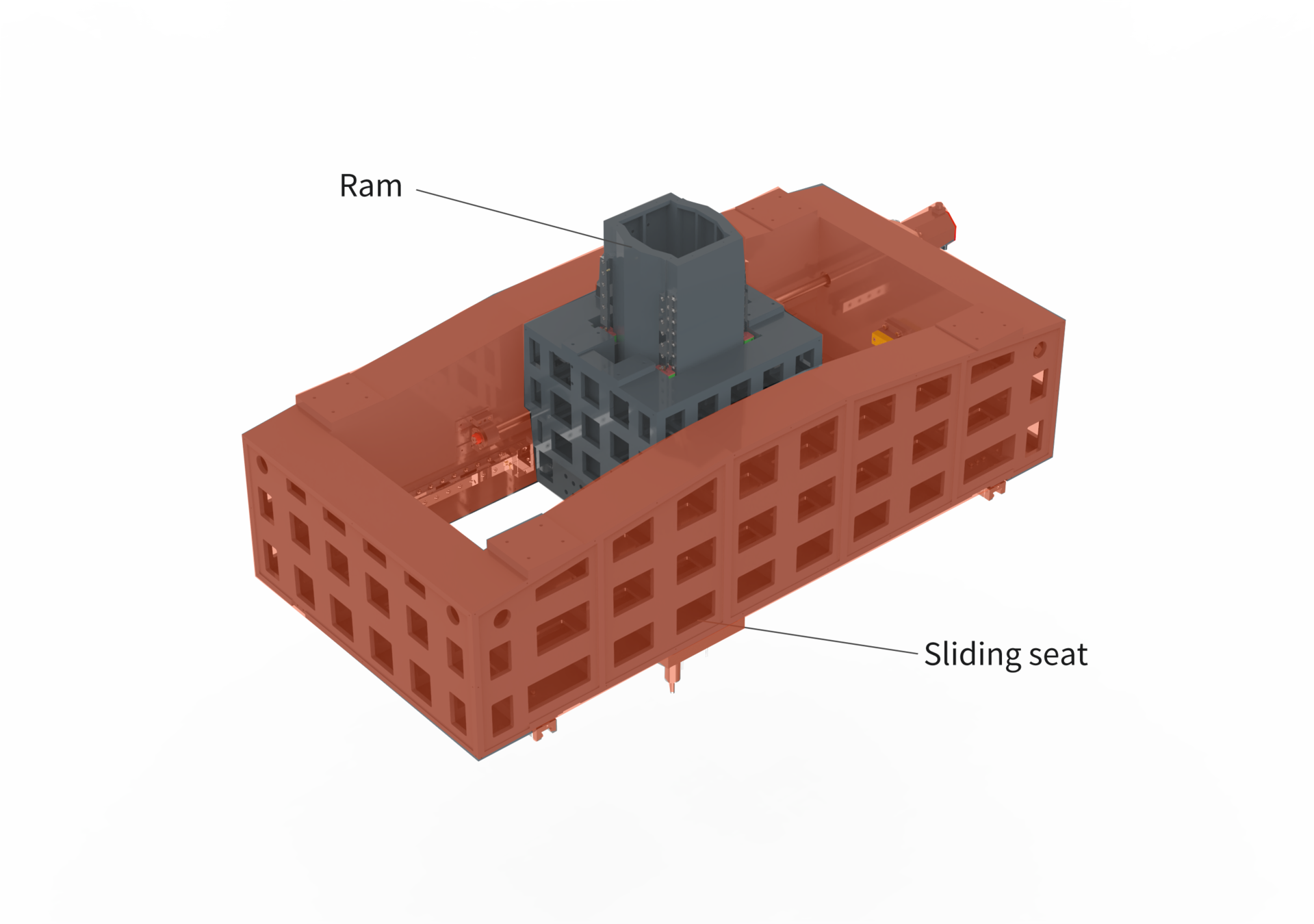

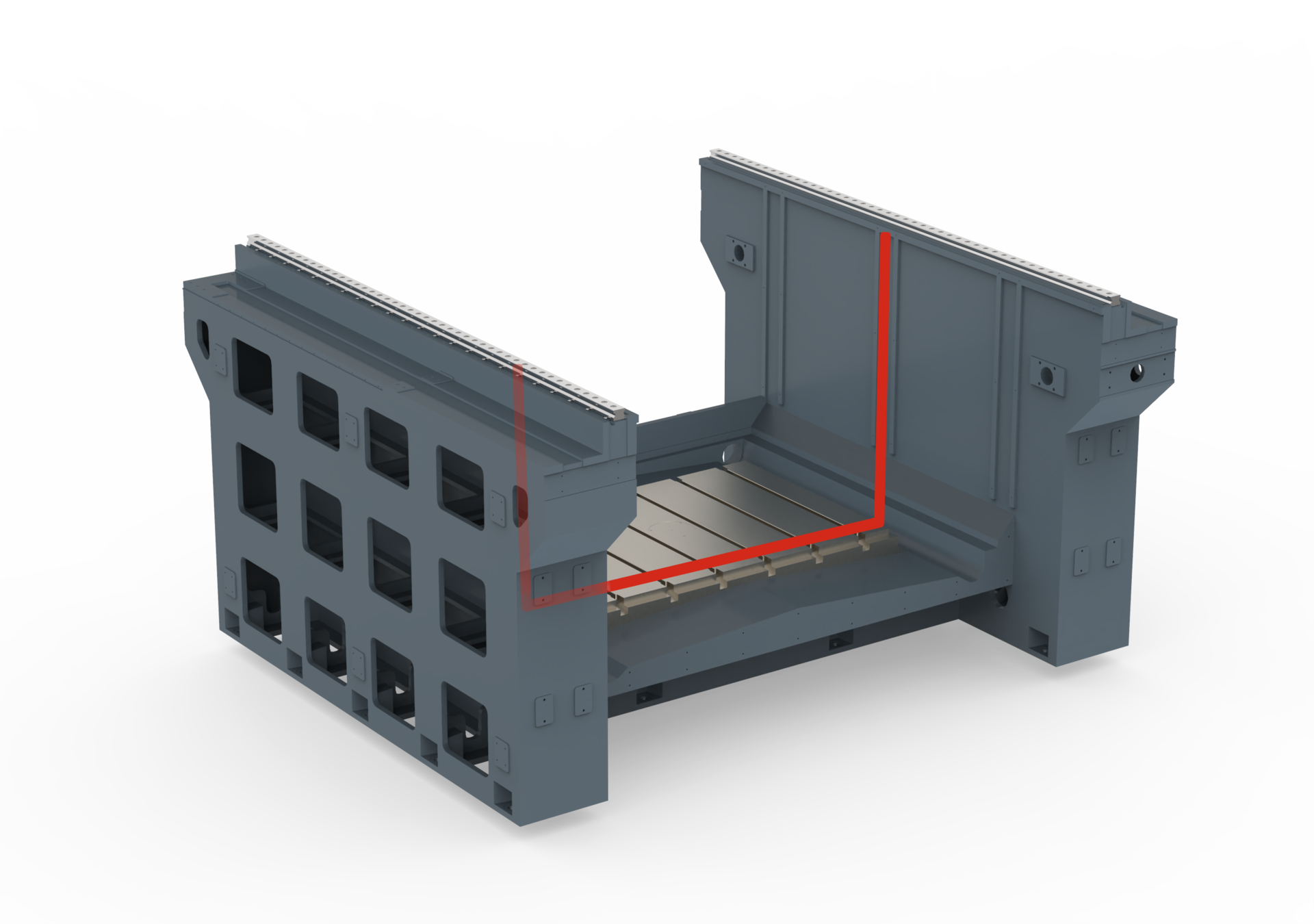

| The integrated worktable and wall ensures the accuracy of machine tool
|
|
 |
The optimized structure enables the equipment to maintain high performance
|

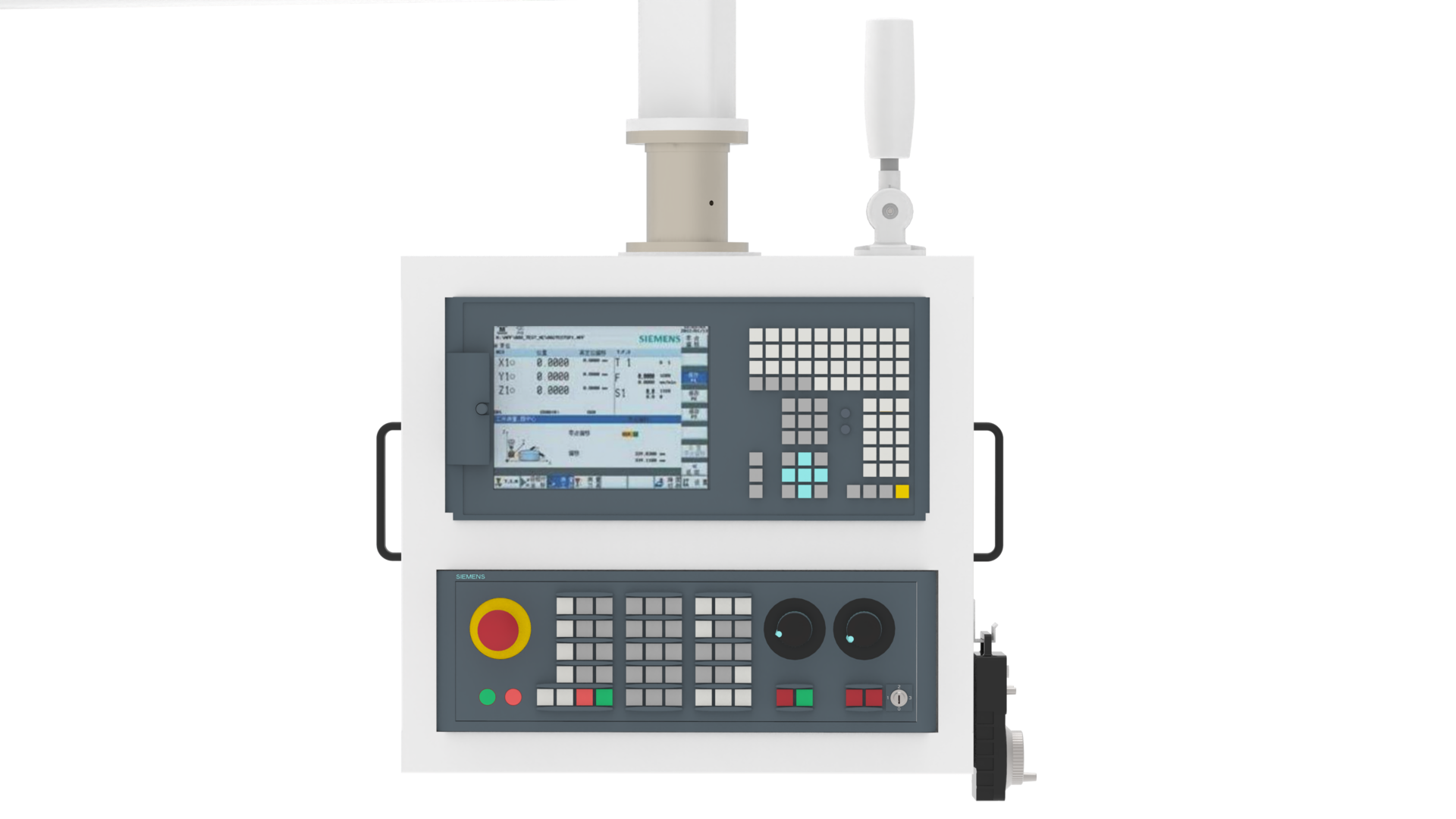

Comprehensive, top class, open electrical system
|
 |
BASIC INFORMATION
- The machine integrates the function of milling, boring, drilling, reaming, tapping.
- Machining for various metal workpieces, such as large parts, plate parts, shell parts, molds and other precision parts.
- Widely used in automotive, shipbuilding, molds manufacturing and other industries.
CONFIGURATION
| Standard Configuration
Siemens/Fanuc CNC system High precision 2-axis head Motorized spindle with HSK A63 taper X/Y/Z high-performance servo motor Centralized automatic feeding lubrication device Cast iron machine bed and moving parts Water-jet cooling system Chain-type chip conveyor Air conditioning of electric cabinet Tri-color alarm lamp Lighting device of machine Separated handwheel |
Optional Configuration

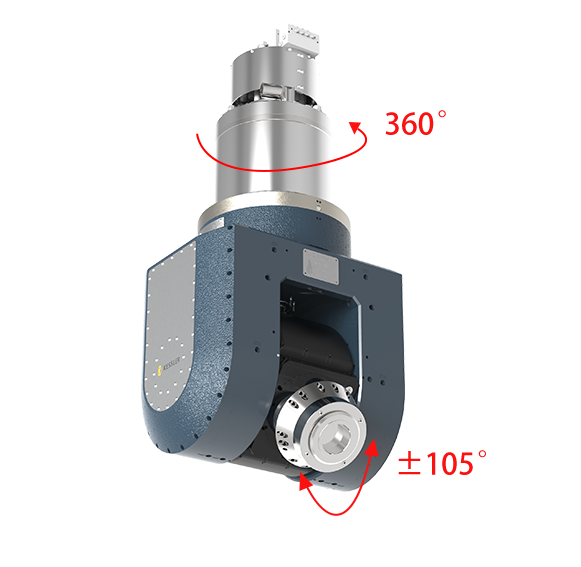

24-location disc type tool magazine 32-location chain-type tool magazine 40-location chain-type tool magazine 40-location vertical and horizontal integrated tool magazine Self-developed PRATIC AC10 2-axis head Self-developed PRATIC AC20 2-axis head Self-developed PRATIC AC30 2-axis head Through-spindle coolant (TSC) Linear encoder closed-loop control 4th axis rotary table Workpiece inspection Tool detection |
VIDEO
TECHNICAL DATA
| Items | Unit | PHC5D-1630/40/60 | PHC5D-2030/40/60 | |
| Travel | X-axis | mm | 3000/4000/6000 | 3000/4000/6000 |
| Y-axis | mm | 1600 | 2000 | |
| Z-axis | mm | 800 | 1000 | |
| A-axis | / | ±105° | ||
| C-axis | / | ±360° | ||
| Spindle nose to table | mm | 0-800 | 0-1000 | |
| Distance between columns | mm | 2250 | 2850 | |
| Worktable | Size | mm | 1600*3000/4000/6000 | 2000*3000/4000/6000 |
| Max. load | T/㎡ | 5 | ||
| Number/Distance of T-slots | / | 22H7; 250 | ||
| Spindle unit | Type | / | Motorized | |
| Rate Power | kW | 25/30（S1/S6） | ||
| Max. speed | rpm | 8000/20000 | ||
| Rated torque | N.m | 30/36(S1/S6) | ||
| Taper | / | HSK A63 | ||
| Square ram | mm | 450*450 | ||
| Feedrates | Rapid on X/Y/Z | m/min | 30/30/30 | |
| X/Y/Z Cutting Feed Rate | m/min | 15/15/15 | ||
| Dimension | Machine Height | mm | 4300 | 4800 |
| Machine Width | mm | 5300 | 5700 | |
| Machine Length | mm | 7300/8300/10300 | 7300/8300/10300 | |
| Machine Weight | t | 26/29/35 | 28/31/37 | |
