5 Axis CNC gantry machining center

5 axes | Moving column desigh | HSK A63

• Universal and flexible processing capability

• Capable of multi-angle, multi-direction processing of special-shaped parts

Description



DESCRIPTION





TECHNICAL DATA







CONFIGURATION





SEND A MESSAGE



HIGHLIGHTS





High performance 5 axis linkage processing

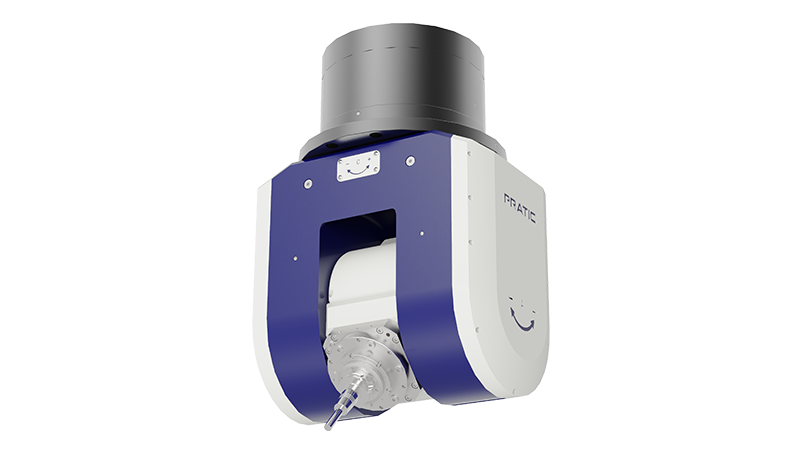

  • Equipped with self-developed A/C head,
  • Equipped with high-performance 2-axis head, HSK A63 high speed motorized spindle, realizing multi-directional and multi-angle processing, to meet the processing requirements of high smoothness of various special-shaped parts.

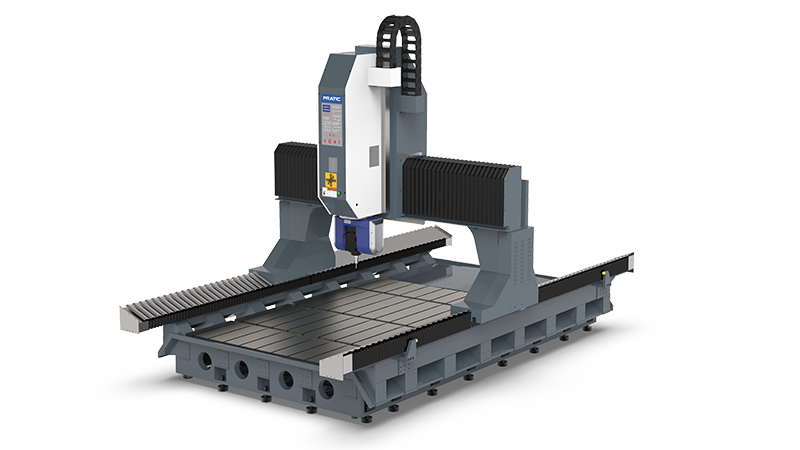

Latest gantry structure design, with superior dynamic performance and higher acceleration

  • The integrated structure of columns and beams reduces the center of gravity of the equipment, improves the overall anti-overturning ability and rigidity
  • Combined with the large area of processing, to meet the diverse needs of customers

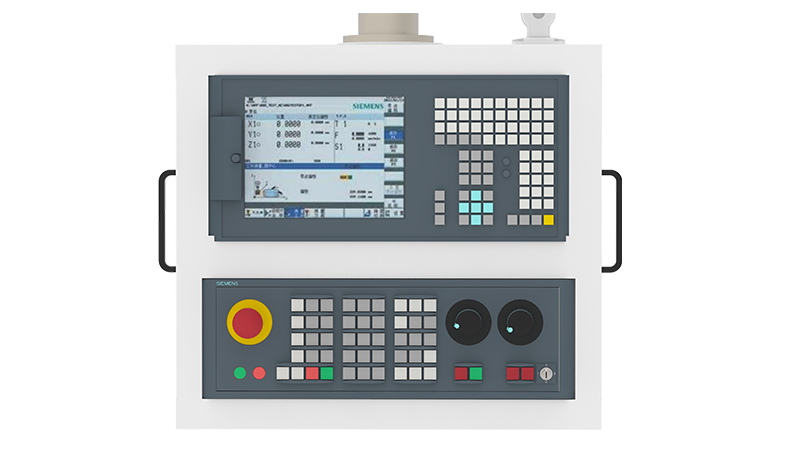

Top-class numerical control system with high processing stability

  • The Siemens 5-axis system is equipped
  • With powerful functions and full-level data transmission
  • Adopts a modular and open architecture design with high scalability
  • Achieves almost all machining applications.

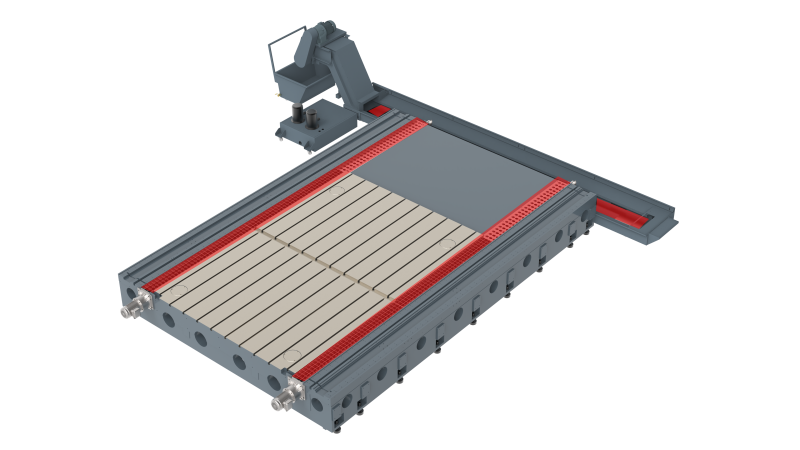

亮点5.png The powerful automatic chip removal capability

  • The double screw chip removers and a chain plate chip conveyor are equipped, delivering the powerful chip discharging capability, to ensure timely discharge of processing waste chips.

BASIC INFORMATION

  • The machine integrates the function of milling, drilling, tapping.
  • Machining for different kinds of aluminum, steel, cooper materials.

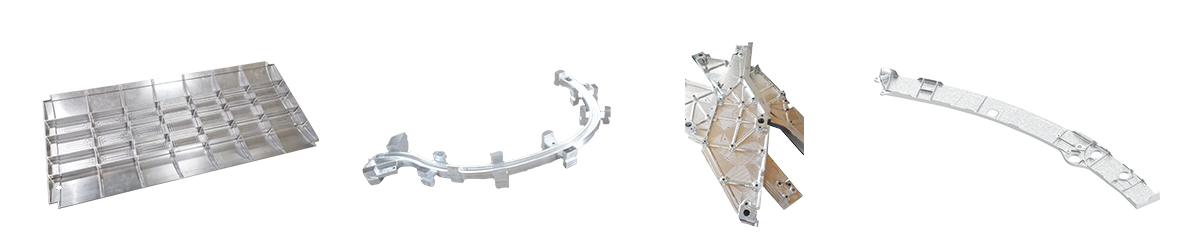

  • Widely used in processing special-shaped parts in aerospace, automotive and machinery engineering.




CONFIGURATION

STANDARD



1.jpg 2.jpg 3.jpg

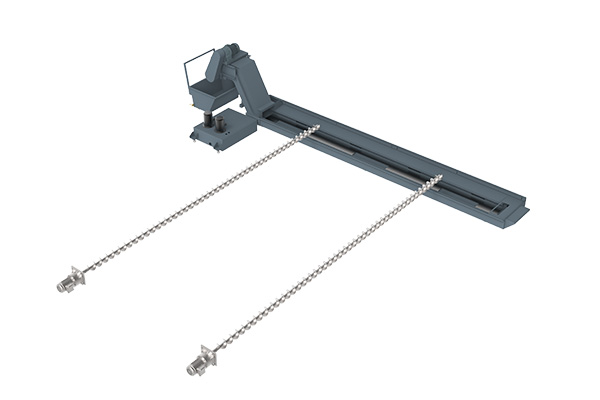

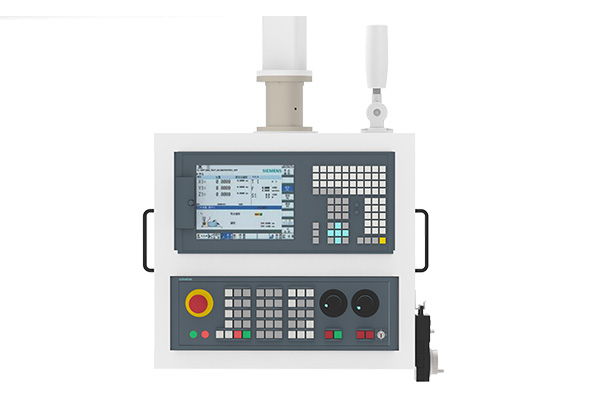

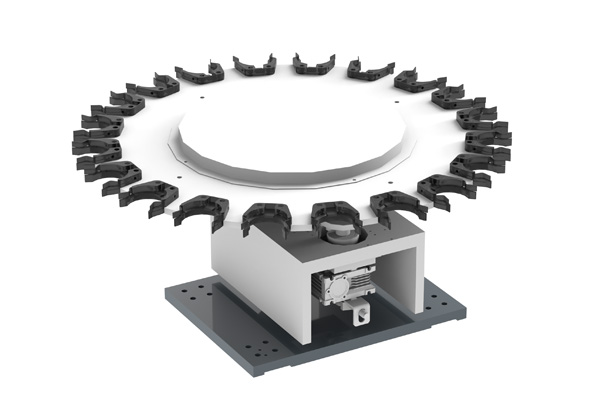

 Umbrella type tool magazine Chip conveyor Operate system

OPTIONAL

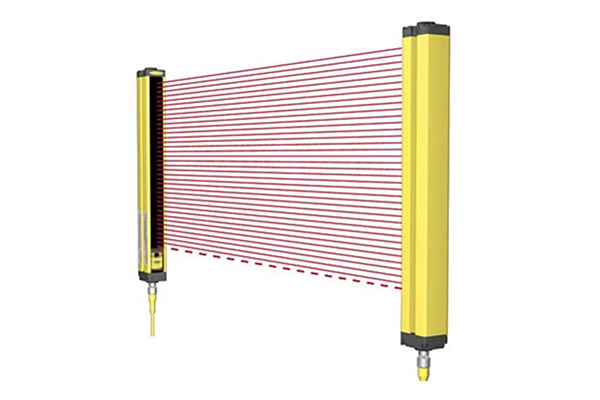

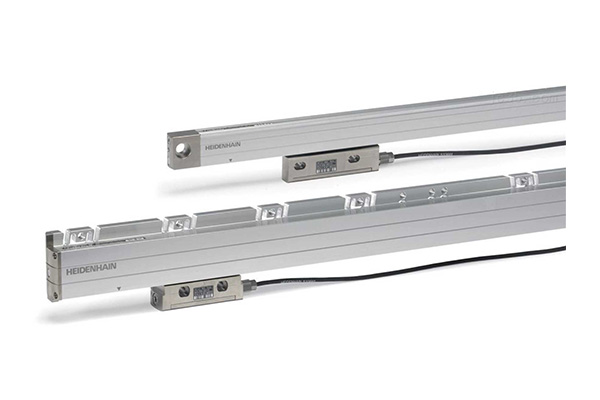

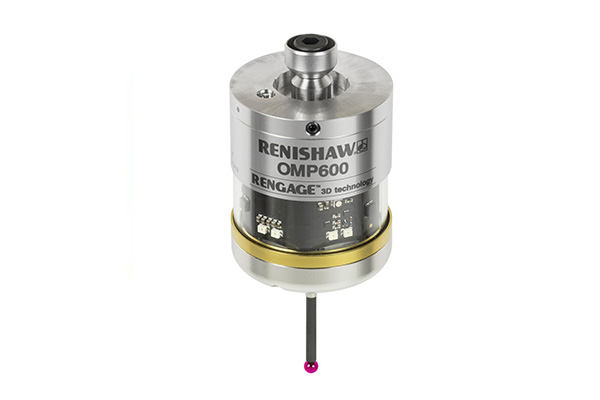

Linear scale Light curtain Inspection probe

TECHNICAL DATA

Items Unit PHE5D-CNC3020
Travel X-axis mm 3000
Y-axis mm 3 axis: 1850
4 axis: 1400
Z-axis mm 530
A-axis / ±185°
C-axis / ±320°
Spindle Type / Motorized
Max. speed rpm 24000
Taper / HSK A63
Feedrates 3 axis screw Rack and pinion
Rapid on X/Y/Z m/min 42/48/48 60/60/48
X/Y/Z Cutting Feed Rate m/min 20 15
Tool Magazine Type / Umbrella type
Capacity pcs. 24
Tool-to-tool time sec 2
Max. tool diameters/length/weigth φ80mm/280mm/8kg
Dimension Machine Height mm 3200
Covering Area mm 7100*4100
Machine Weight t 15
