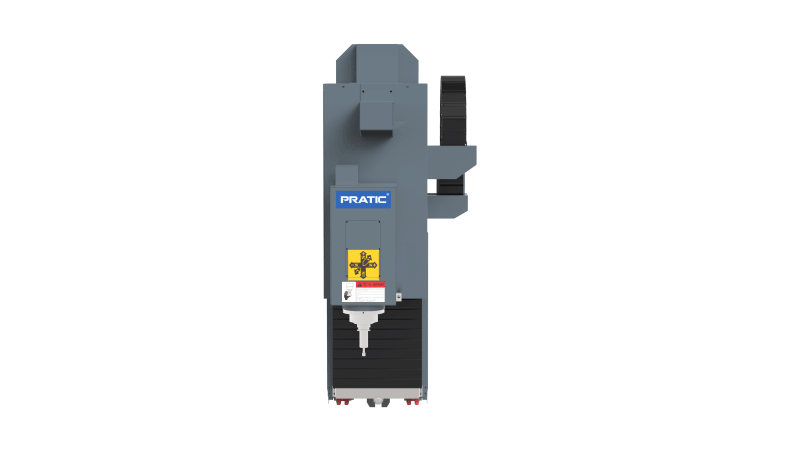

With B-aixs rotation within ±90°，to meet a wide processing range
|
|
 |
High-precision and high-speed motorized spindle system
|

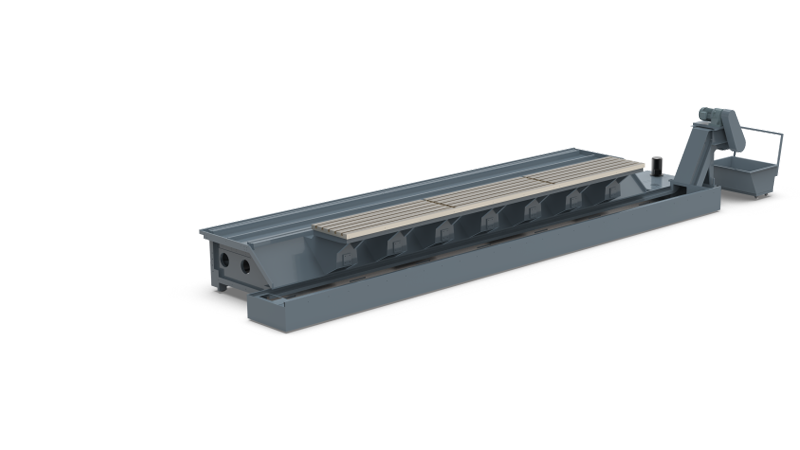

Casting iron bed with strong shock absorption capacity and high physical stability
|
|
 |

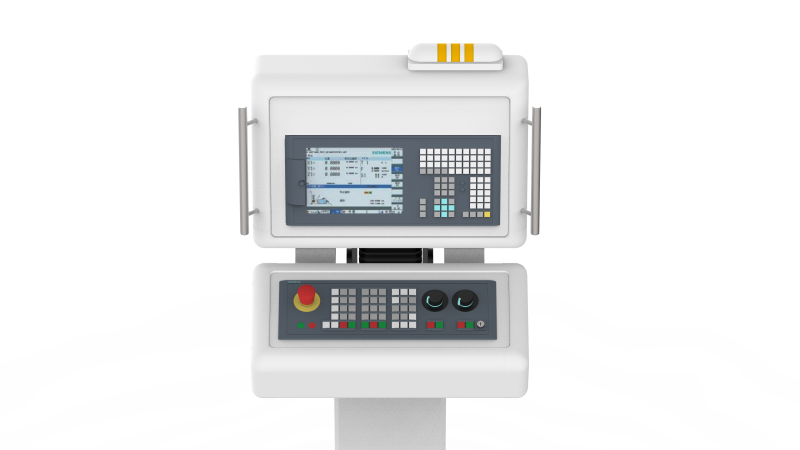

Top-class numerical control system with high processing stability
|
BASIC INFORMATION
- The machine integrates the function of milling, drilling and tapping
- Machining for various materials with special shape and curved surface, such as aluminum, steel, copper.

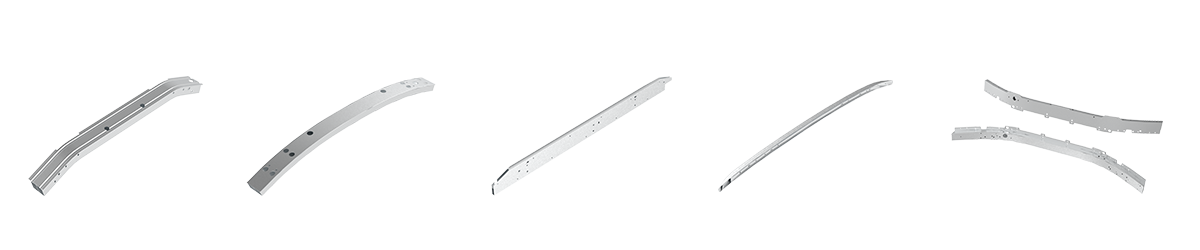

- Widely used in automotive industries for machining bumpers, sunroof rail, rack and etc.
CONFIGURATION
STANDARD
 |
 |
 |

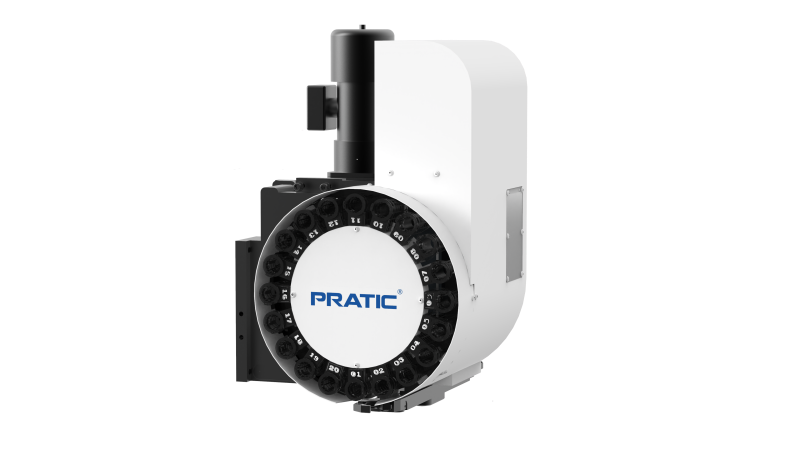

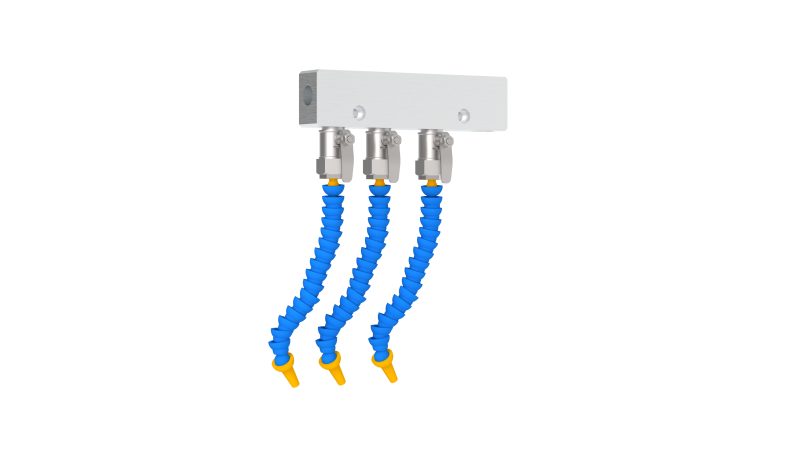

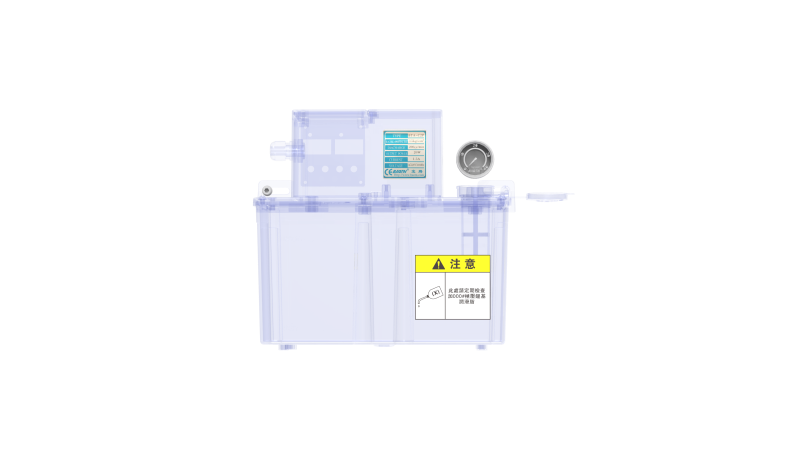

| Disc type tool magazine | Water cooling | Lubrication system |
OPTIONAL
 |
 |
 |
| Double heads | 4th axis rotary table | Through-spindle Coolant(TSC) |
 |
 |
 |
| Fixtures | Linear encoder | Laser tool setting system |
VIDEO
TECHNICAL DATA
| Items | Unit | PDE4D-CNC2500 | PDE4D-CNC4500 | PDE4D-CNC6500 | |
| Travel | X-axis | mm | 2500 | 4500 | 6500 |
| Y-axis | mm | 500 | |||
| Z-axis | mm | 700 | |||
| B-axis | / | ±90° | |||
| Distance from spindle nose to table surface | mm | 130-830 | |||
| Worktable | Size (length*width) | mm | 2500×550 | 4500×550 | 6500×550 |
| Max. load | kg/m2 | 1000 | |||
| T-slot (Number/width/center distance) | mm | 5/18/100 | |||
| Spindle | Type | / | Motorized | ||
| Rated power | kW | 15/16 | |||
| Max. speed | rpm | 18000 | |||
| Taper | / | BBT/SK/CAT40 | |||
| Feedrates | Rapid on X/Y/Z | m/min | 60/28/28 | ||
| X/Y/Z Cutting Feed Rate | m/min | 15 | |||
| Tool Magazine | Type | / | Disc type | ||
| Capacity | pcs. | 24 | |||
| Tool-to-tool time | sec | 2 | |||
| Dimension | Machine Height | mm | 3200 | ||
| Covering Area | mm | 6700*2850 | 8710*2850 | 10700*2850 | |
| Machine Weight | kg | 10500 | 12500 | 14700 | |
