High bed structure
|
|
|
Fully enclosed structure
|
Front and rear dual station fixtures
|
|
|
Standard three-axis screw
|
BASIC INFORMATION
- The PB series structure with high machine bed, which can effectively prevent water chips from splashing outside the equipment, meanwhile protect important parts such as guideways and screws, improve the machine’s lifetime and reliability.
- The three axes of the 1800 and 2500 models are driven by screw to meet the requirement of higher machining accuracy. The rapid traverse speed can reach 50m/min, superior dynamic performance and higher acceleration.
- The bottom of the workbench is designed with a large inclined surface for chip removal, which is more convenient for cleaning and chip removal.

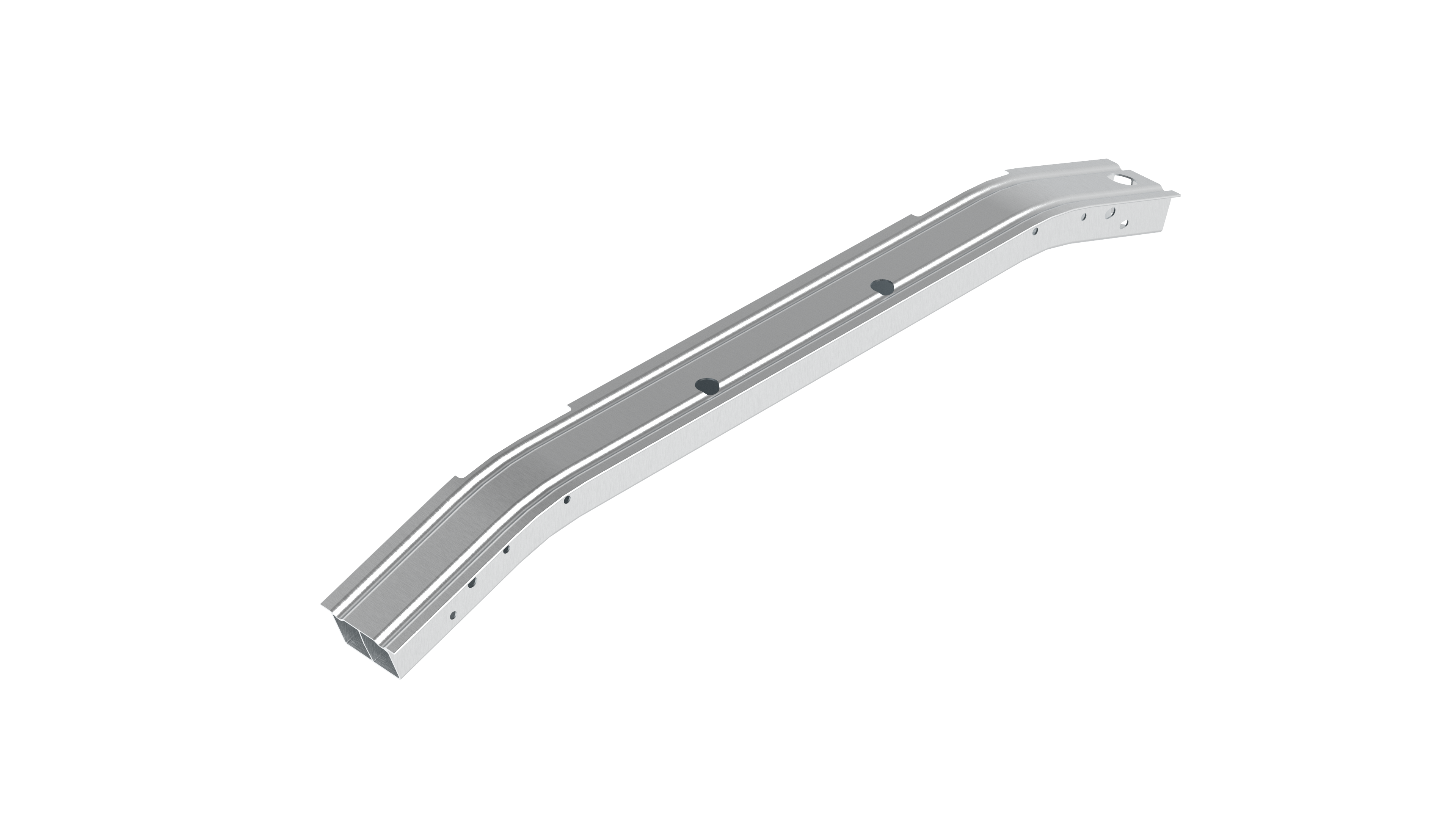

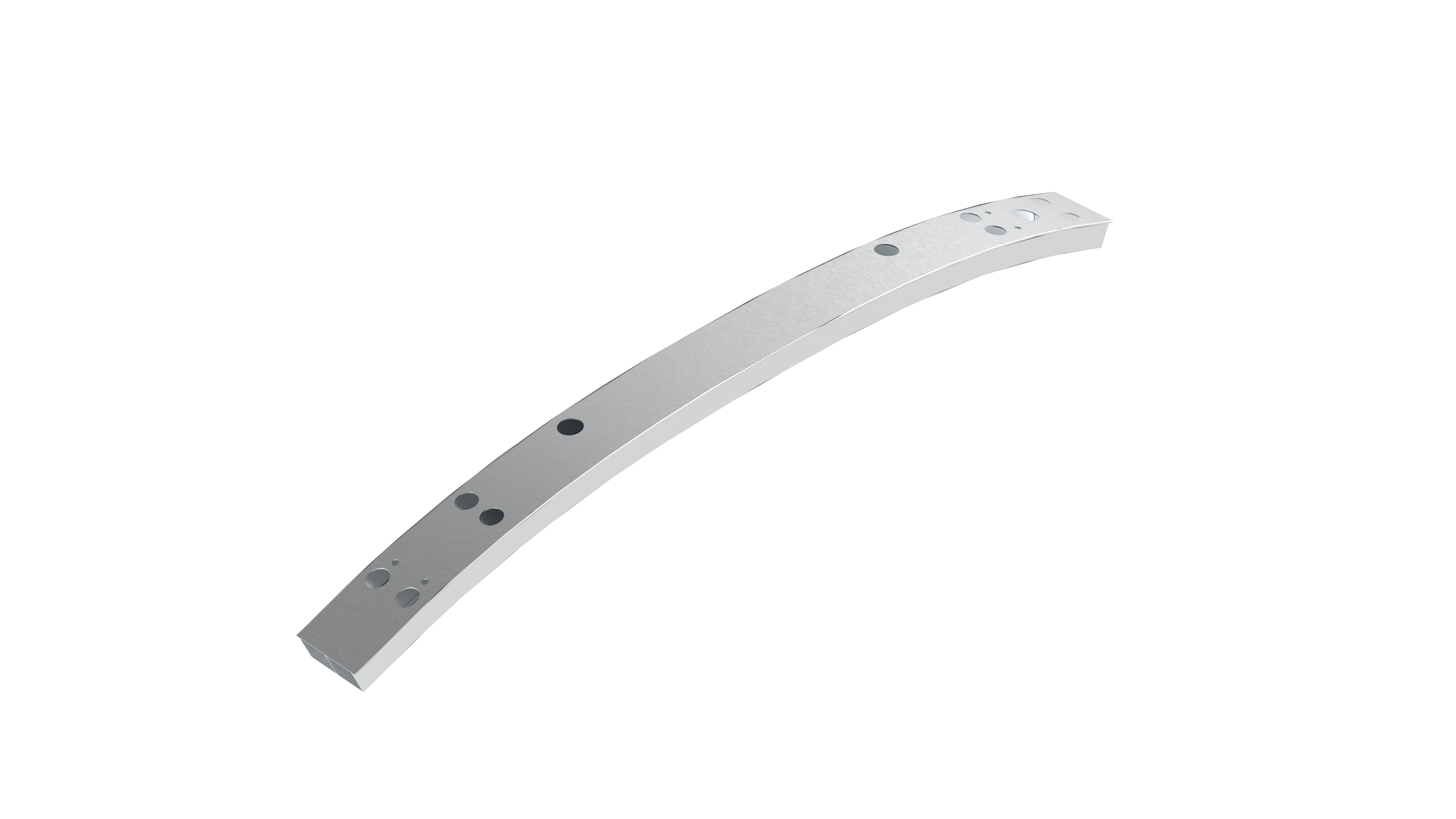

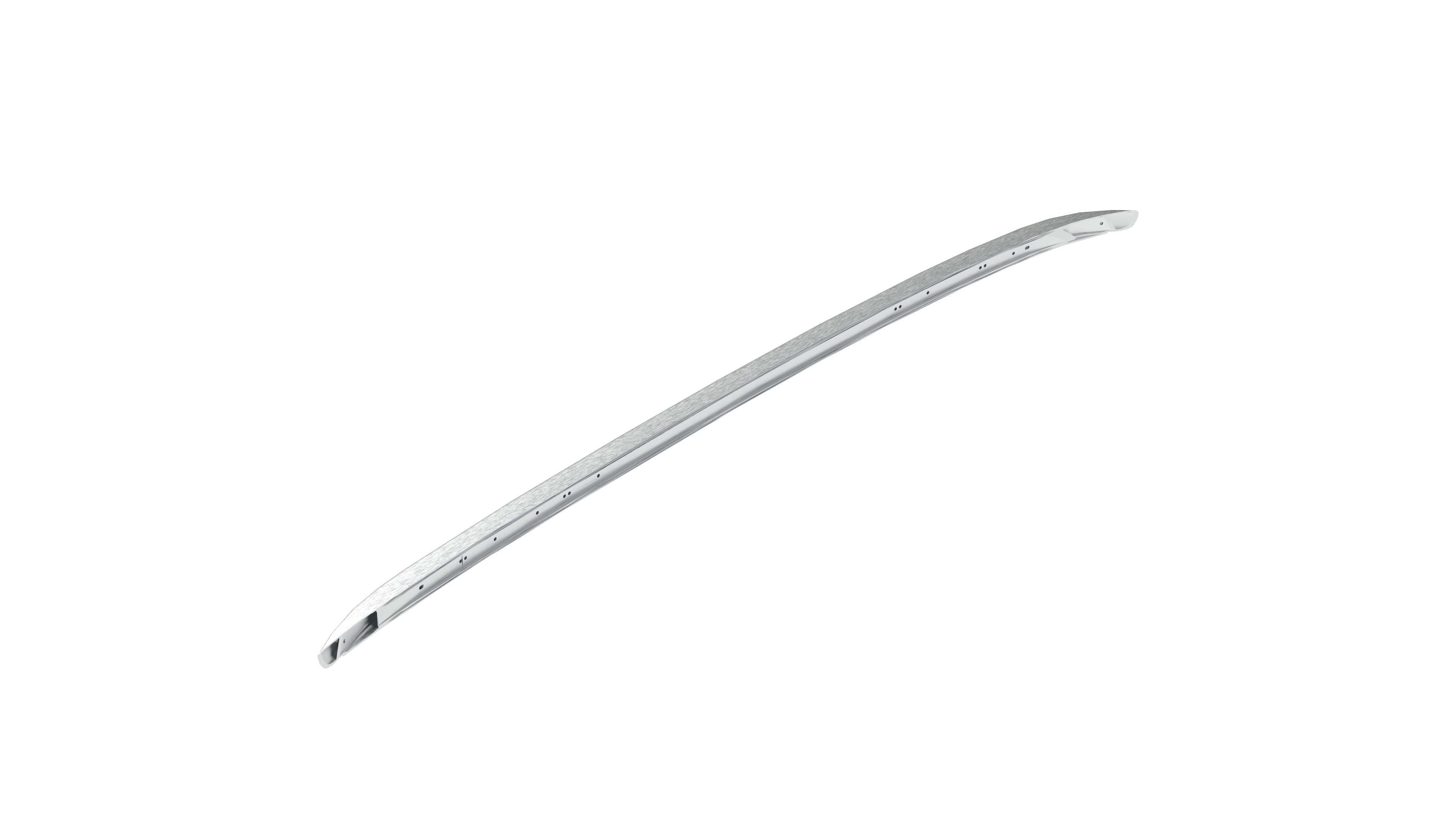

- Mainly used for processing aluminum and steel profiles in the industries of automobile, rail transit,machinery manufacturing, etc.
CONFIGURATION
STANDARD

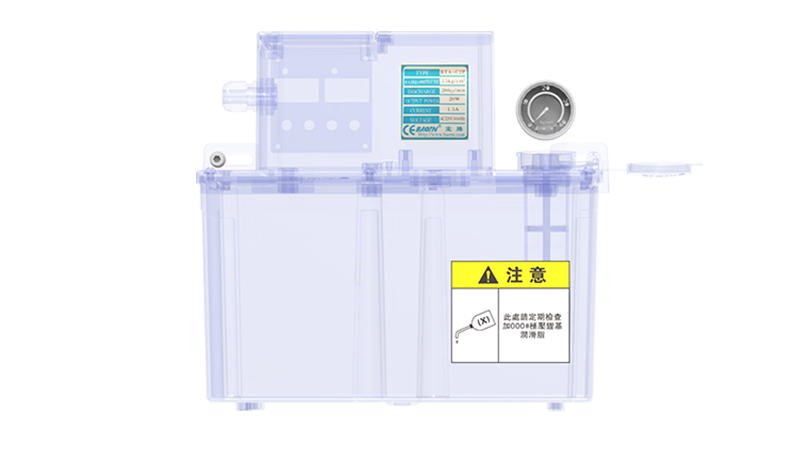

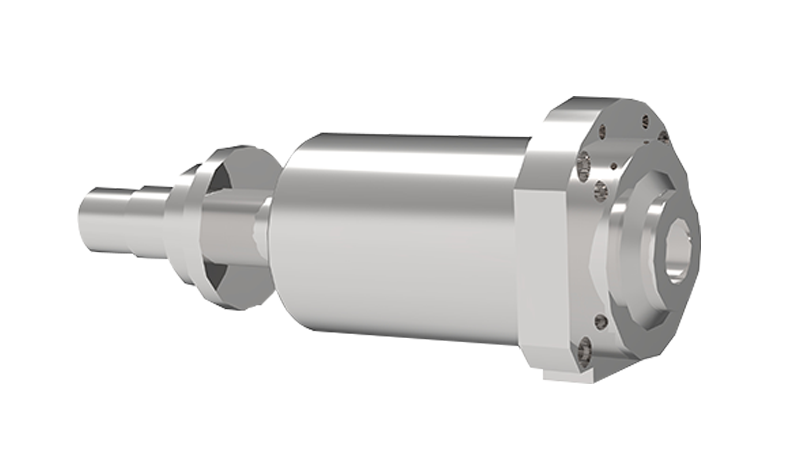

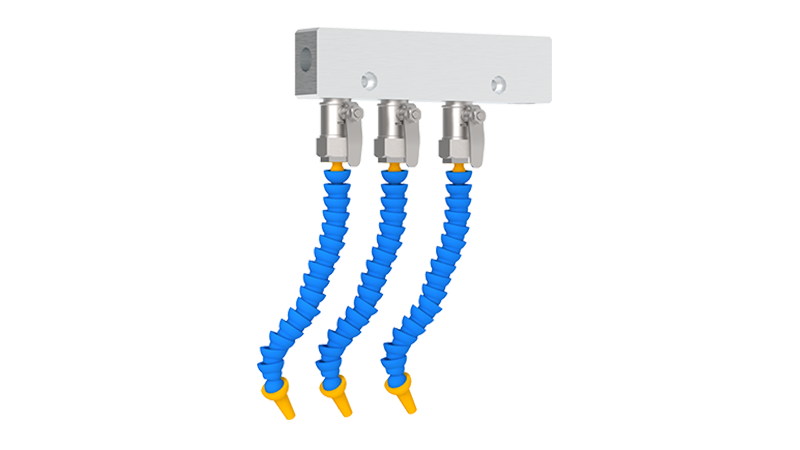

BT40/SK40/CAT40 | Lubrication system | Solvable oil coolant |
OPTIONAL
|
||

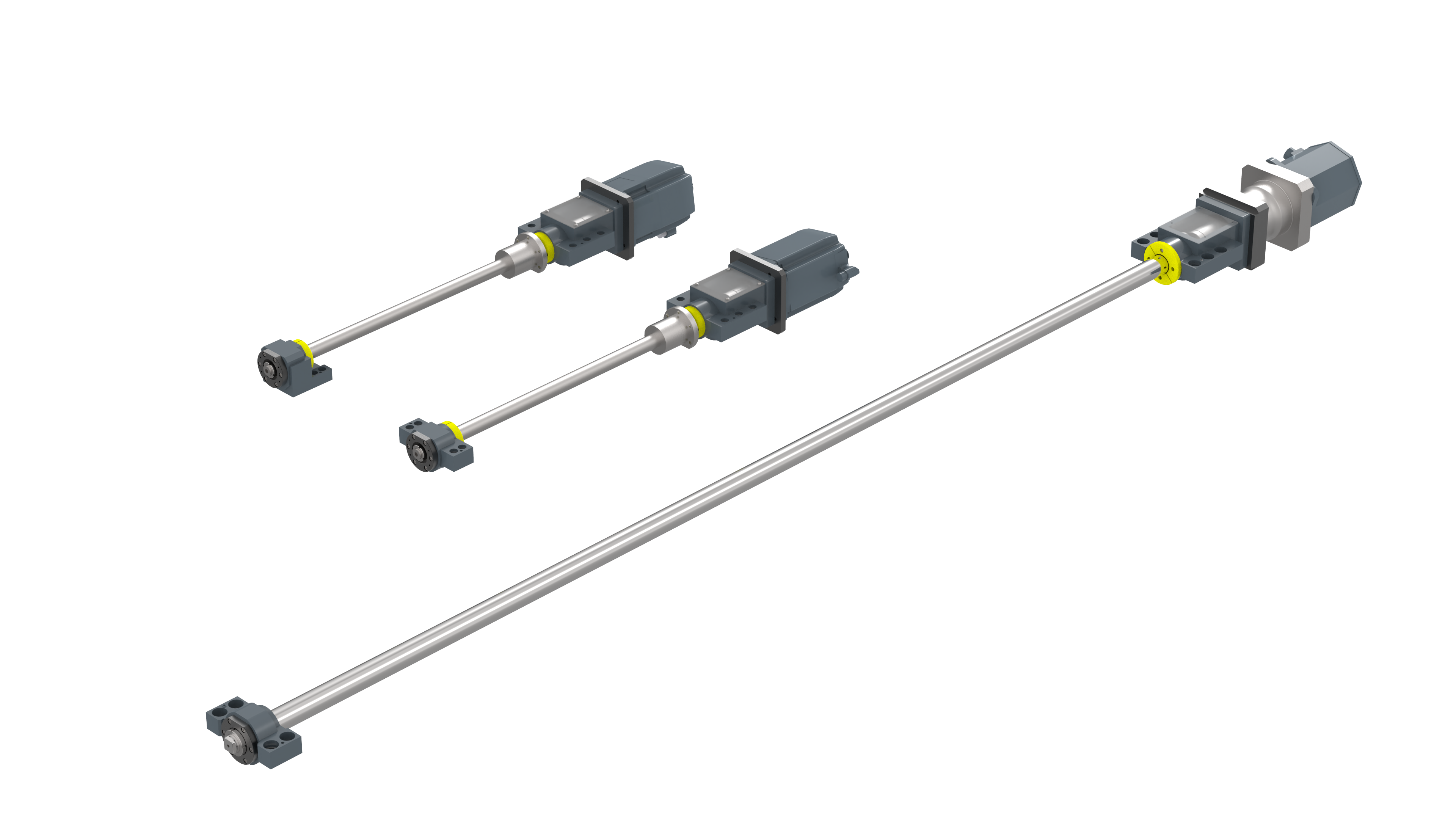

Three-axis Screw | Four-axis rotary table | Manipulators |
VIDEO
TECHNICAL DATA
TRAVELS | PB65-18/25/45/65(casting) | |
X-Axis | 1800/2500/4500/6500 mm | |
Y-Axis | 650 mm | |
Z-Axis | 700 mm | |
SPINDLE | ||
Spindle speed | 12000 rpm | |
Spindle taper | BT40/SK40/CAT40 | |
TOOL MAGAZINE | ||
Type | Disc type | |
Max.pockets of tool magazine | 24 pcs | |
Max.tool diameter(full adjacent pockets) length/weight | φ75mm/300mm/8 kg | |
Tool change time (tool to tool) | 2 sec | |
AXIS FEED RATES | ||
Rapid on X | 50 m/min | |
Rapid on Y/Z | 36/36 m/min | |
X/Y/Z Cutting feed rate | 15000 mm/min | |
CNC SYSTEM | FANUC | SIEMENS |
MOTOR POWER | ||
Spindle power | 11/18.5 kW | 11/23.2 kW |
X/Y/Z-Axis Drive motor | 3.0/3.0/3.0 kW | 5.5/3.5/5.5 kW |
LUBRICATION AND COOLING SYSTEM | ||
Lubrication system | Automatic | |
Coolant system | Water cooling | |
ACCURACY | ||
X-Axis Positioning accuracy | 0.02 mm | |
Y/Z-Axis Positioning accuracy | 0.015 mm | |
X/Y/Z-Axis Repeatability accuracy | 0.01 mm | |
MECHANICAL SPECIFICATION | ||
Required pneumatic pressure | 6 kg/cm² | |
Machine height | 3800 mm | |
Floor area | 4100/4900/6900/9000×3550 mm | |
Machine weight | 6/8/10/12 t |
