Description

3 Axis Machining Center Providers

Founded in 2003, we employ more than 100 people and have a factory spanning over 25,000 square meters. However, the firm is focused on creating and manufacturing 3 axis machining center for a range of industries. Therefore, we work together with the clients to use a variety of processing tools to design and produce complex parts.

For your unique projects, we are offering a wide range of CNC machining services as a top manufacturer in the industry. 3 axis machining center has gained us, satisfied clients, all over the world with long-term collaboration. It offers premium machined components, cutting-edge technology, adaptable manufacturing capacity for big and low-volume orders, and competitive costs. Get in touch with us.

Product Line

The organization possesses 281 sets of testing apparatus, including Zeiss CMM, image measuring devices, two-dimensional, 2.5-dimensional, salt spray, Rockwell, Vickers, and X-ray film thickness testers, among other types of testing equipment.

The goods find extensive applications in several industries, including aircraft, high-speed rail, medical, automobile, yacht, industrial equipment, precise testing instruments, and photography and optics. The organization may offer dependable technical support to clients by utilizing innovative 3 axis machining centers and a tight quality management system.

HIGHLIGHTS

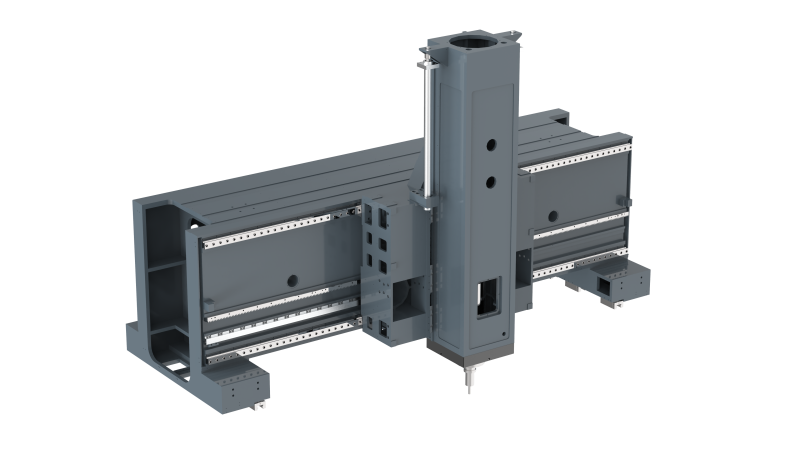

Bridge-type high speed gantry machine The worktable and the pillars on two sides are fixed, the beam moves along the pillar (X-axis), the main spindle moves along the beam (Y-axis), and the ram moves up and down (Z-axis)

The optimized structure enables the equipment to maintain high performance   The lightweight of moving parts achieves high rotation feed, while reducing the load of guide screw and guide rail， reducing wear, which improves machining accuracy and prolong the machine service life. The bridge structure increases the rigidity of the load- bearing part of the machine tool, which effectively avoids the vibration that is easy to occur when the beam moves quickly and the spindle runs at high speed. The two sides symmetrical pyramid bed structure can realize high rigidity, high bearing capacity and high stability. Fixed worktable saves space and with greater carring capacity.

Integrated one-piece structure is used to ensure machine rigidity The integrated worktable, casting from high-strength high-quality cast iron and resin sand processing, and is arranged in a ‘box’ structure, featuring high strength and rigidity The integrated beam and slide structure, made of high-strength high-quality cast iron, with compact design, which ensures the rigidity of the beam.

The beam with intensive stiffener structure, having good bending resistance and cutting resistance The Intensive stiffener structure is adopted for the beam, which is obtained by using finite element analysis, it is not easily deformed and it increases the rigidity.

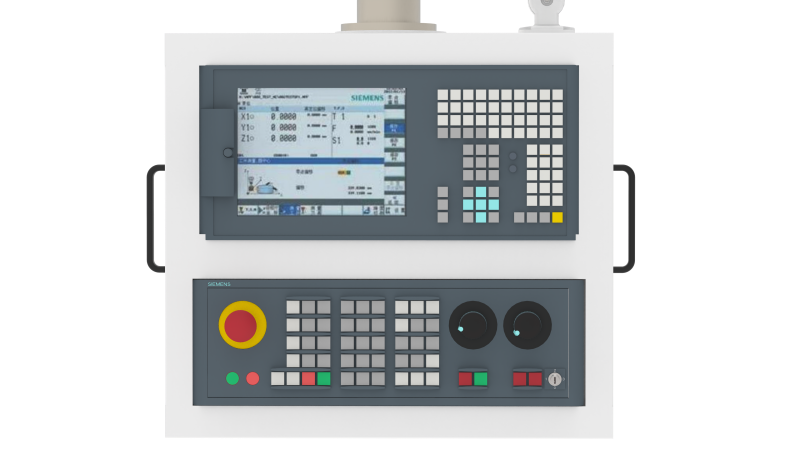

Comprehensive, top class, open electrical system The Siemens or Fanuc CNC system is adopted to the machine, with the following advantages: With powerful functions and full-level data transmission Adopts a modular and open architecture design with high scalability Increase the flexibility and productivity of the machine tool
