3 Axis long-travel moving column machining center

3 axes | Ultra-Large working area |
BT40/BT50 spindle

• Larger working area for various size of workpieces

• High rigidity, high efficiency and high precision

Description



DESCRIPTION





TECHNICAL DATA





 VIDEO





SEND A MESSAGE



HIGHLIGHTS

High-performance and robust spindle system meets the most challenging modern processing needs of a wide range of metal materials

  • The spindle unit is particularly efficient, highly flexible and robust, perfect for universal use. BT/SK/CAT 40 standard taper gives the tool greater stability and balance at high speeds, higher level of static stiffness, ensures the machining precision.


附件1 PYC-CNC4500.png

Casting iron bed with strong shock absorption capacity and high physical stability

  • The casting iron machine bed undergoes a perfect heat treatment process to eliminate residual stress, with sufficient reinforcement plates and three rows of supporting feet ensures the rigidity.
Top-class numerical control system with high processing stability

  • The Siemens and Fanuc CNC system is adopted
  • With powerful functions and full-level data transmission
  • Adopts a modular and open architecture design with high scalability
  • Increase the flexibility and productivity of the machine tool
亮点4.png Intensified moving column structure brings higher rigidity and higher precision

  • The intensified moving column structure, together with the increased contact surface of the rail and slide block, reduces the deformation of the X-axis, and ensures the high rigidity and precision machining of the machine tool.

BASIC INFORMATION

  • The machine integrates the function of milling, drilling and tapping

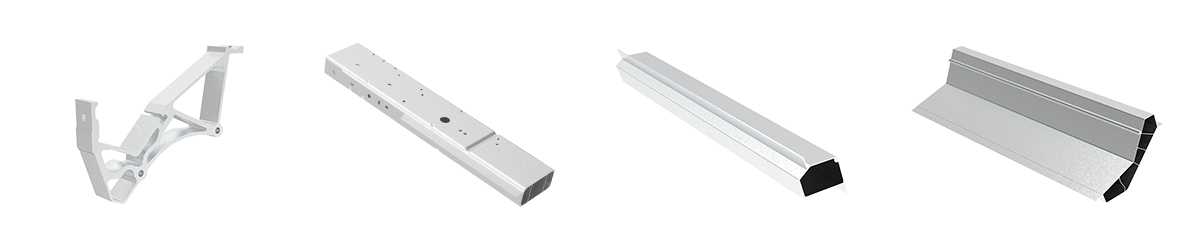

  • Matching for processing of various metal parts, such as steel, aluminum, copper etc..
  • Widely used in industries of machinery manufacturing, automotive, rail transportation and etc.


CONFIGURATION

STANDARD



20220118111844823.png@!w400 20220118111845534.png@!w400 20220118111845631.png@!w400

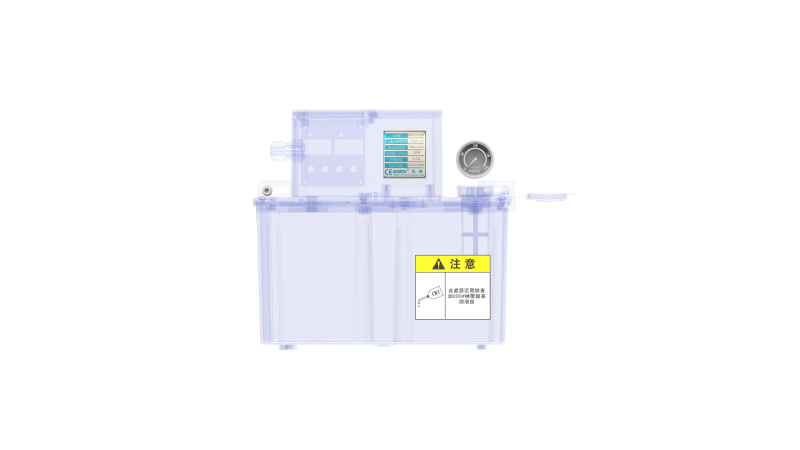

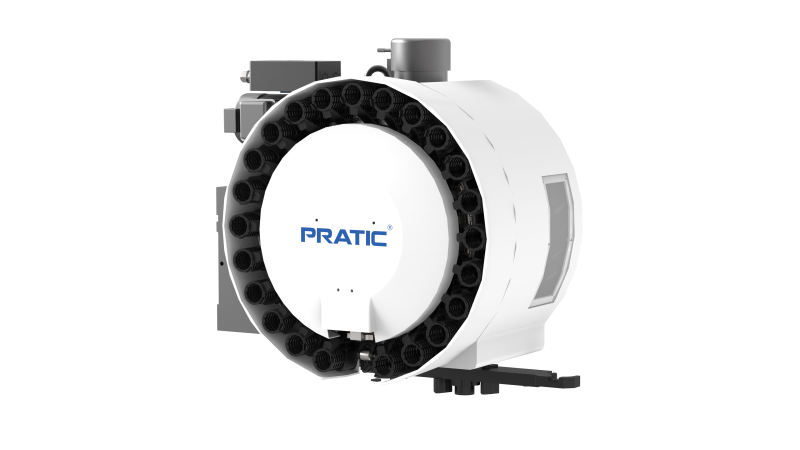

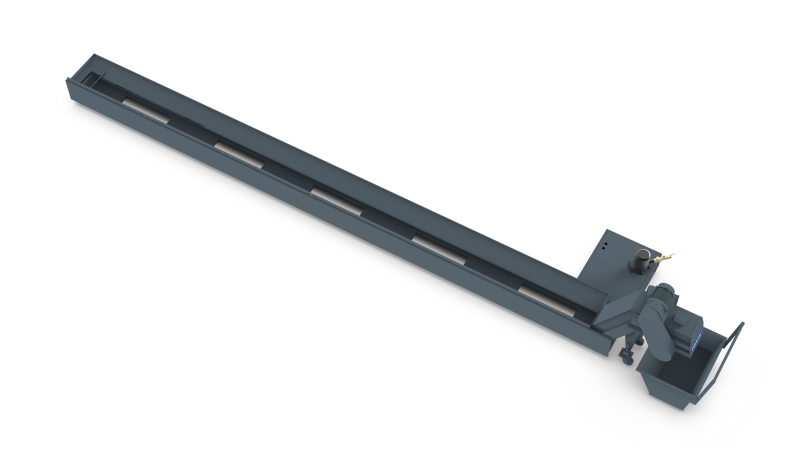

Chain chip conveyor Disc type tool magazine Lubrication system

OPTIONAL







20220323133959435.png@!w400 20220323132033963.jpeg@!w400 20220323132036282.jpg@!w400

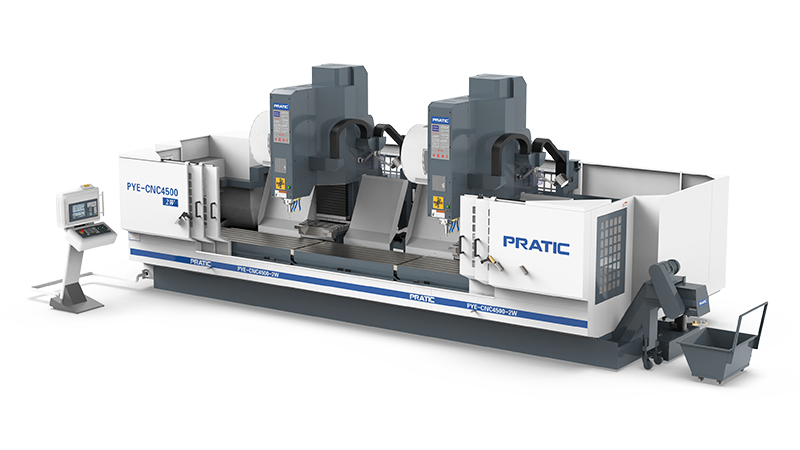

Double heads 4th axis rotary table Through-spindle Coolant(TSC)
20220323132034236.JPG@!w400 20220323132035240.jpg@!w400 20220323132035545.jpg@!w400
Fixtures Linear encoder Laser tool setting system

VIDEO

TECHNICAL DATA



BT50/SK50/CAT50 Spindle
Items Unit PYE-CNC2500B PYE-CNC4500B PYE-CNC6500B
Travel X-axis mm 2500 4500 6500
Y-axis mm 650 650 650
Z-axis mm 700 700 700
Distance from spindle nose

to table surface

mm 130-830 130-830 130-830
Worktable Size (Length*Width) mm 2500×650 4510×650 6520×650
Max. load kg/m² 1200 1400 1600
T-slot

(Number/Width/Center distance)

mm 6/18/100
Spindle Type / Mechanical
Rated power kW 15/17
Max. speed rpm 8000
Taper / BT/SK/CAT50
Feedrates Rapid on X/Y/Z m/min 60/48/40
X/Y/Z Cutting Feed Rate m/min 15
Tool Magazine Type / Disc type
Capacity pcs. 24
Tool-to-tool time sec 2
Dimension Machine Height mm 3100
Covering Area mm 6900*3100 8700*3200 10900*3200
Machine Weight kg 12000 16500 17000
BT40/SK40/CAT40 Spindle
Items Unit PYE-CNC2500 PYE-CNC4500 PYE-CNC6500
Travel X-axis mm 2500 4500 6500
Y-axis mm 650 650 650
Z-axis mm 700 700 700
Distance from spindle nose

to table surface

mm 130-830 130-830 130-830
Worktable Size (Length*Width) mm 2500×650 4510×650 6520×650
Max. load kg/m² 1200 1400 1600
T-slot

(Number/Width/Center distance)

mm 6/18/100
Spindle Type / Mechanical
Rated power kW 11/13
Max. speed rpm 10000
Taper / BT/SK/CAT40
Feedrates Rapid on X/Y/Z m/min 60/48/48
X/Y/Z Cutting Feed Rate m/min 15
Tool Magazine Type / Disc type
Capacity pcs. 24
Tool-to-tool time sec 2
Dimension Machine Height mm 3100
Covering Area mm 6900*3100 8700*3200 10900*3200
Machine Weight kg 12000 16500 17000
