Description
HIGHLIGHTS
| International level component guarantee
Standard Taiwan brand three-axis linear guide rail, high speed and high precision. |
 |
 |
BT30 rotation realizes high-speed rotation
The high-speed spindle motor drives the spindle directly, which has higher processing efficiency and better machining surface quality. |
| High speed tool change
Standard servo tool magazine, quick and stable tool change. |
 |
BASIC INFORMATION
- Machine tool integrated milling, drilling and tapping function modules.
- Suitable for processing metal profiles of various lengths such as aluminum, steel, copper and non-metallic materials.

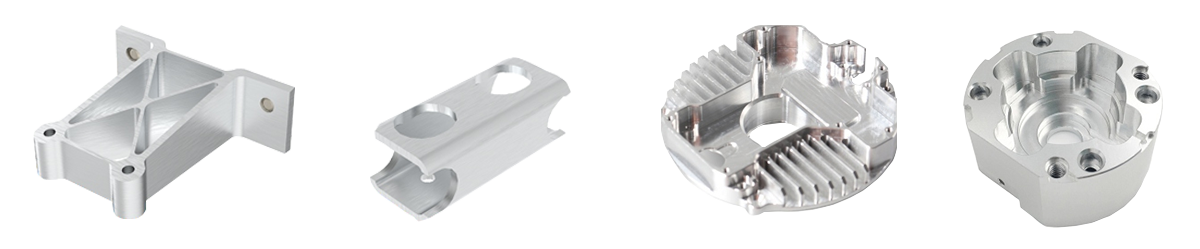

- Suitable for medium and small box, plate, shell and other complex parts processing, widely used in 3C product, IT, optical, medical equipments and aluminum alloy products and other industries.
TECHNICAL DATA
| project | unit | PVLB-T6 | PVLB-T7 | PVLB-T8 | |
| travel | X-axis | mm | 600 | 700 | 800 |
| Y axis | mm | 400 | 400 | 500 | |
| Z axis | mm | 350 | 350 | 420 | |
| The distance from the rotating nose to the work surface | mm | 145-495 | 145-495 | 145-495 | |
| worksheet | Dimensions (length*width) | mm | 700×420 | 420×800 | 500×1000 |
| Highest.load | kg/m² | 300 | 300 | 350 | |
| T-slot (quantity/width/center distance) | mm | 3-*14T*125 | 3-*14T*125 | 3-*14T*125 | |
| ¶ | type | / | Mechanical | Mechanical | Mechanical |
| Power supply (S1/S6) | kilowatt | 5.5 | 5.5 | 5.5 | |
| Magnesium alloy (S1/S6) | nanometer | 14.1/17.5 | 14.1/17.5 | 14.1/17.5 | |
| fastest. | import | 20000 | 20000 | 20000 | |
| Taper | / | BT30 | BT30 | BT30 | |
| Feed rate | Fast on X/Y/Z | m/min | 48/48/48 | 48/48/48 | 48/48/48 |
| X/Y/Z cutting feed rate | m/min | 1~12000 | |||
| Tool magazine | type | / | Swash plate type | ||
| rich | pieces. | twenty one | |||
| tool time | Second | 1.8 | |||
| aspect | Machine height | mm | 2650 | 2300 | 2700 |
| Coverage area | mm | 2300*1700 | 2000*1900 | 2500*2600 | |
| Machine weight | Kilogram | 3000 | 3300 | 3500 | |
