HIGHLIGHTS
Double Head
|
|
|
|

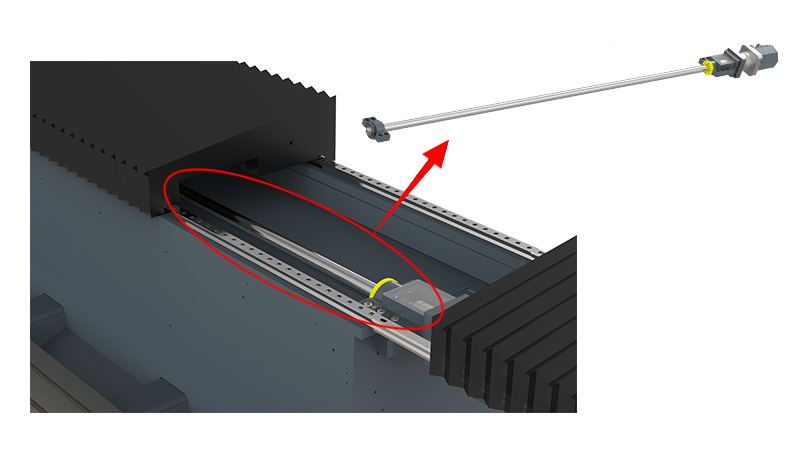

Optimized the structure of moving parts
|
Large bevel for chip remove
|
|
|
Dual station fixtures
|
BASIC INFORMATION
- The PA series structure with high machine bed, which can effectively prevent water chips from splashing outside the equipment, meanwhile protect important parts such as guideways and screws, improve the machine’s lifetime and reliability.
- The 4900 model optional double head, X-axis rapid movement speed is 50m/min, better dynamic performance and higher acceleration.
- The bottom of the worktable is designed with a large inclined surface for chip removal, which is more convenient for cleaning and chip removal.

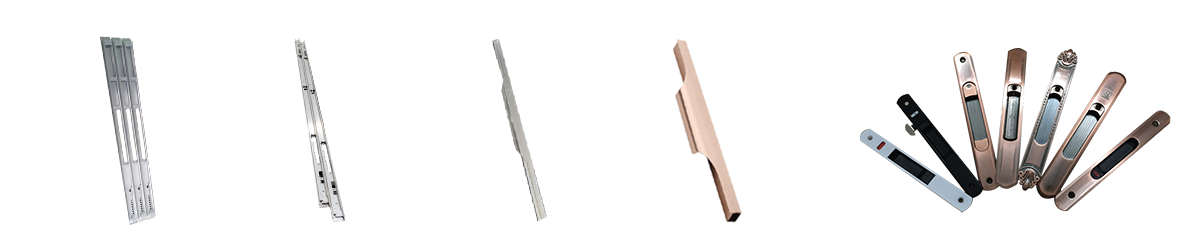

- This PA model is widely used in electronic appliance, customized furniture and other aluminum frame processing.
CONFIGURATION
STANDARD
 |
 |
 |
| BT30/BT40 Spindle taper | Lubrication system | Solvable oil coolant |
OPTIONAL
|
|
|
|

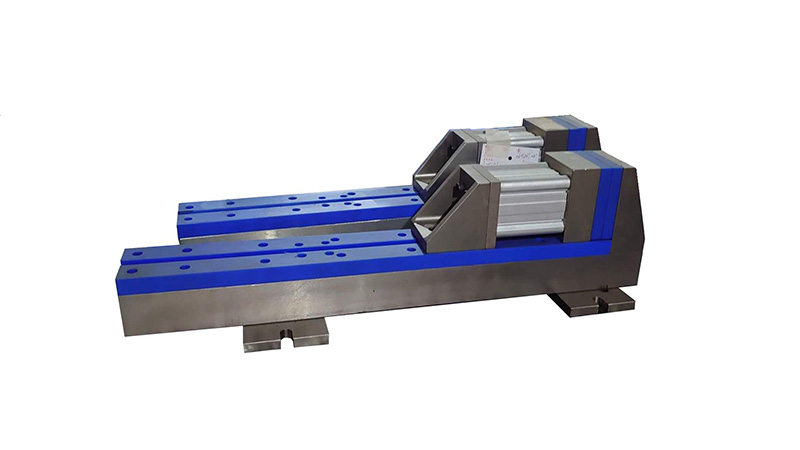

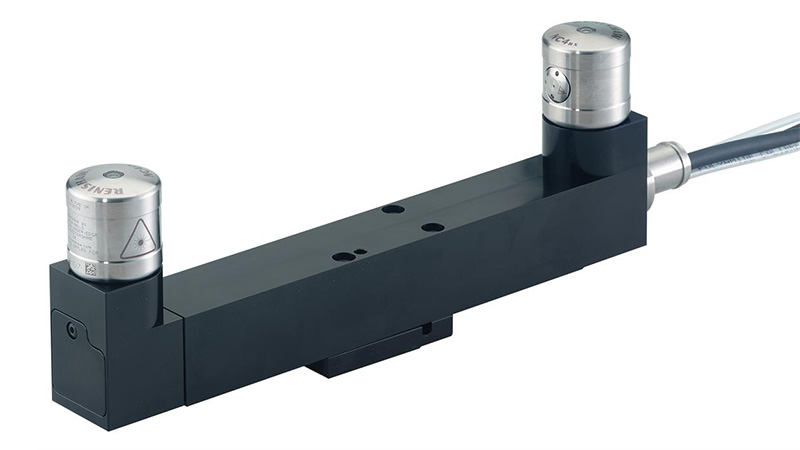

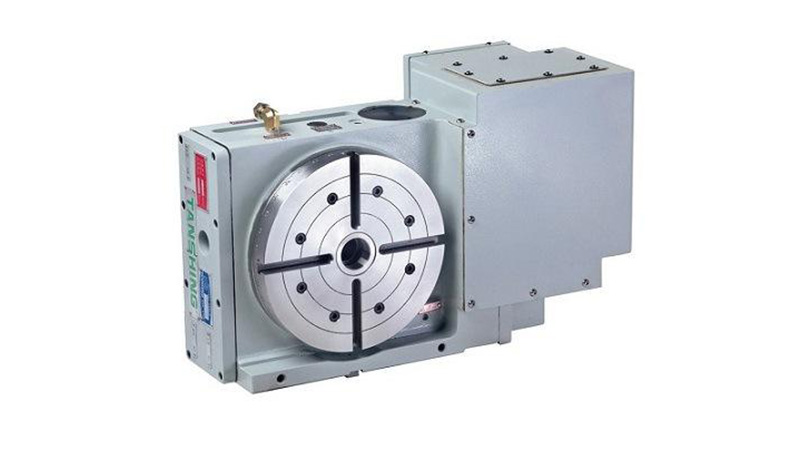

| 4-axis rotary rable | Fixtures | Laser tool setting system |
VIDEO
TECHNICAL DATA
| TRAVELS | PA4900S-2W | |
| X-Axis | 2050(Left/Right Head) mm | |
| Y-Axis | 400 mm | |
| Z-Axis | 400 mm | |
| SPINDLE | ||
| Spindle speed | 12000 rpm | |
| Spindle taper | BT30/SK30/CAT30 | |
| TOOL MAGAZINE | ||
| Type | UFO-type magazine | |
| Max.pockets of tool magazine | 16/21 pcs | |
| Max.tool diameter(full adjacent pockets) length/weight | φ60mm/250mm/3 kg | |
| Tool change time (tool to tool) | 3 sec | |
| AXIS FEED RATES | ||
| Rapid on X | 50 m/min | |
| Rapid on Y/Z | 36/36 m/min | |
| X/Y/Z Cutting feed rate | 15000 mm/min | |
| CNC SYSTEM | FANUC | SIEMENS |
| MOTOR POWER | ||
| Spindle power | 5.5/11 kW | 7.5/16.2 kW |
| X/Y/Z-Axis Drive motor | 3.0/3.0/3.0 kW | 3.5/3.5/3.5 kW |
| LUBRICATION AND COOLING SYSTEM | ||
| Lubrication system | Automatic | |
| Coolant system | Water cooling | |
| ACCURACY | ||
| X-Axis Positioning accuracy | 0.02 mm | |
| Y/Z-Axis Positioning accuracy | 0.015 mm | |
| X/Y/Z-Axis Repeatability accuracy | 0.01 mm | |
| MECHANICAL SPECIFICATION | ||
| Required pneumatic pressure | 6 kg/cm² | |
| Machine height | 2800 mm | |
| Floor area | 6550×3500 mm | |
| Machine weight | 8.7 T | |
