PRATIC Machining Center Fixtures Introduction
PRATIC Machining Center Fixtures Introduction

Fixtures are specially designed and installed on a machining center so that large numbers of workpieces can be machined identically, precisely and efficiently.
PRATIC CNC is constantly upgrading the design, manufacture and application of fixtures with rich knowledge in practice.

Here is brief introduction of PRATIC machining centers fixtures.

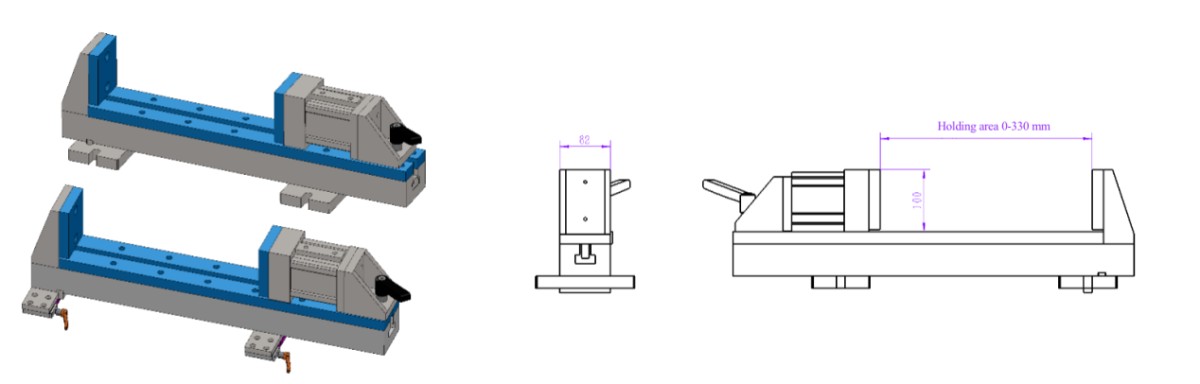

1. PRATIC 1st-generation universal fixtures

There are two types which are working table installed type and linear guideway installed type. As to the name, working table installed type means the fixtures are installed on working table, and the linear guideway installed type means the fixtures are installed on linear guideway. The first generation fixtures fit for PRATIC PY/PC series machining centers.

  • The holding area is between 0-330mm
  • The pneumatic pressure is 0-0.6MPA
  • The theoretical maximum clamping force of each fixture is about 170KGS

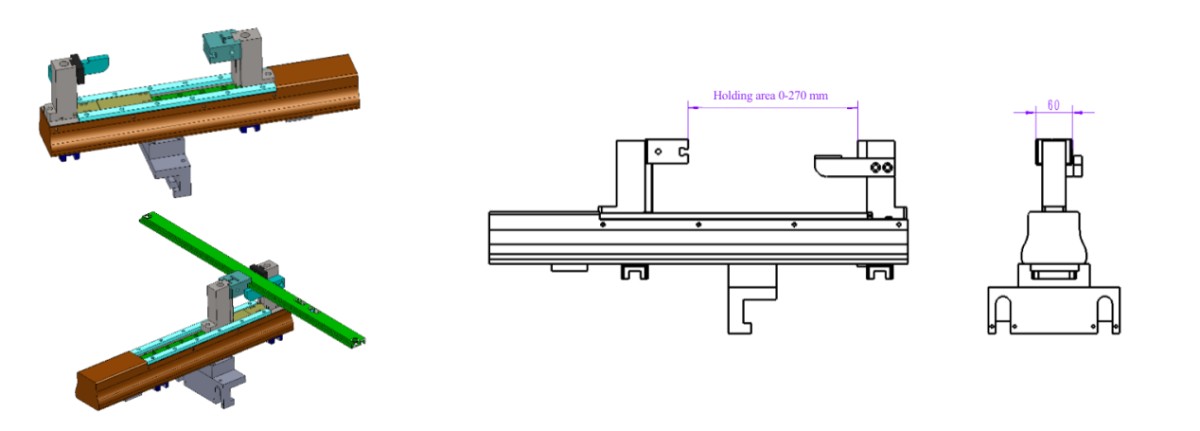

2.PRATIC 2nd-generation universal fixtures

The 2nd-generation fixtures are linear guideway installed type, and they are mainly fit for PRATIC machining centers for windows, door and curtain wall making industries.

  • The holding area is between 0-270mm
  • The pneumatic pressure is 0-0.6MPA.
  • The theoretical maximum clamping force of each fixture is about 170KGS.

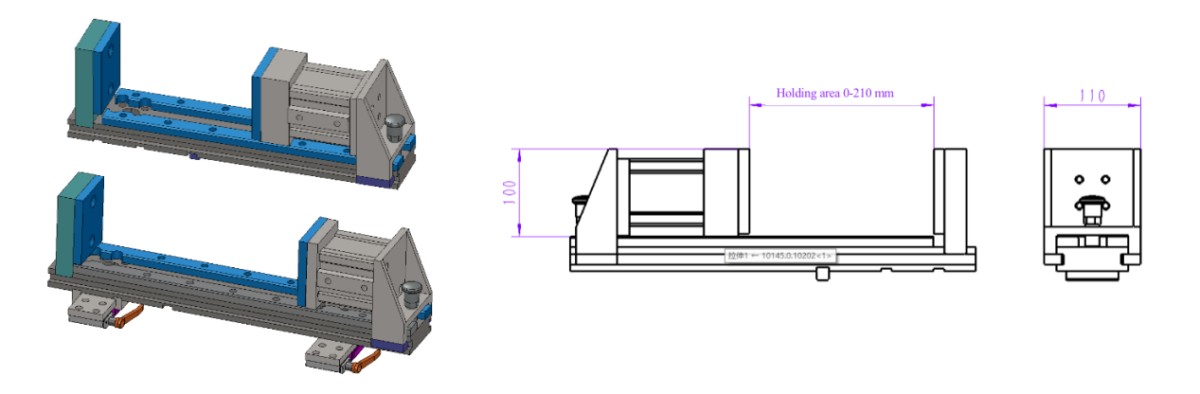

3.PRATIC 3rd-generation universal fixtures

Just like the 1st-generation, there are also two types, i.e. working table installed type and linear guideway installed type. The 3rd-generation fixtures fit for PRATIC PIC series machining centers.

  • The holding area is between 0-210mm
  • The pneumatic pressure is 0-0.6MPA
  • The theoretical maximum clamping force of each fixture is about 170KGS.

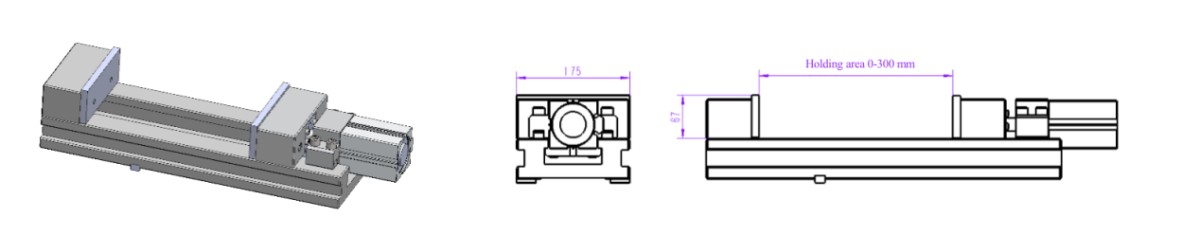

4. PRATIC pneumatic parallel-jaw vises

PRATIC pneumatic parallel-jaw vises are working table installed type, and they are mainly fit for PRATIC PY series machining centers.

  • The holding area is between 0-300mm
  • The pneumatic pressure is 0-0.6MPA
  • The theoretical maximum clamping force of each vise is about 170KGS.

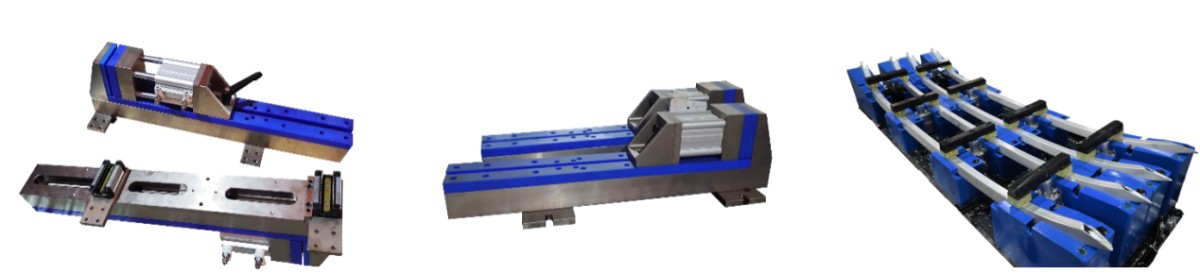

5.Customized Fixtures

Besides above universal fixtures, PRATIC also provides customized fixtures according to different workpieces, with diverse specification.
